SKU
H-17NP
45 angle A joint
45 angle A joint steel cr
USD$1.07
Stocks
Farnham: 7174
Los Angeles: 3424
Lawrenceville: 5612

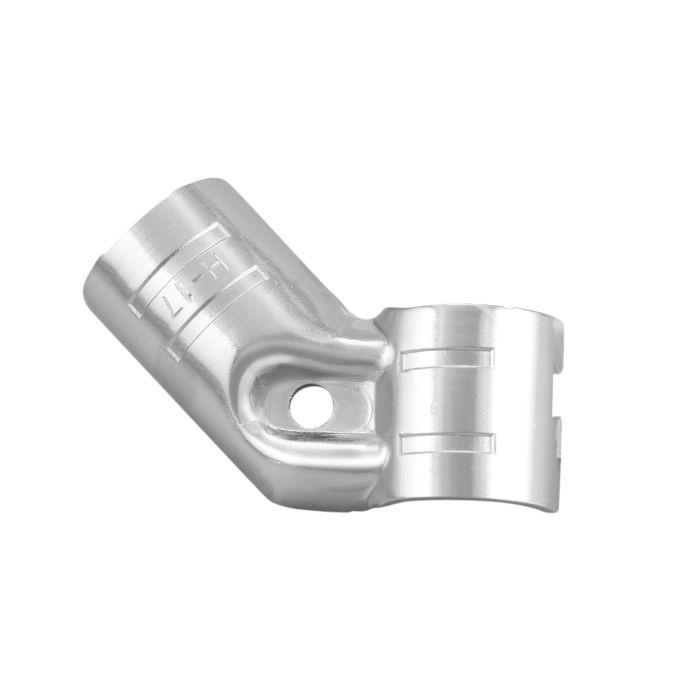

The H-17NP is one of the two anti-static metal single joints used to create the HJ-17NP joint set. When grouped with an H-18NP, this connector becomes a 45° angle joint set. This part doesn't have any purpose without the counterparts, and the same applies to the H-18NP. Together, these single joints let Flexpipe builders modify, create and improve fantastic structures.
This joint is not adjustable, so if you are looking for a more polyvalent solution you should take a look at the Hj-6 joint set. However, the H-17NP coupled with the H-18NP makes a stronger set because unlike the HJ-6NP it requires only those two components.
We recommend that you check the HJ-17NP page to see all the different modules this set is capable of producing.
This joint is not adjustable, so if you are looking for a more polyvalent solution you should take a look at the Hj-6 joint set. However, the H-17NP coupled with the H-18NP makes a stronger set because unlike the HJ-6NP it requires only those two components.
We recommend that you check the HJ-17NP page to see all the different modules this set is capable of producing.
Units per box (sold separately) | 145 |
---|---|
Height inches | 2 1/8 in (54mm) |
Width inches | 3 1/4 in (83mm) |
Depth inches | 1 5/16 in (33mm) |
Unit weight pounds | 0.152 lbs (0.069 kg) |
Box dimensions inches | 11 X 9 X 5 in (279mm X 229mm X 127mm) |
Compatible joint systems | Flexpipe, Creform |
Noncompatible joint systems | Trilogiq, Fastube |
Noncompatible joint systems | Trilogiq, Fastube |
RoHS certification | Yes |
Recyclable | Yes |
Compatible pipe systems | Flexpipe, Creform, Fastube |
Noncompatible pipe systems | Trilogiq |
Frequency of use | Moderate |
Reusable | Yes |
Electric conductivity (ESD) | Yes |
Material | Hot rolled steel (SPHC) |
Steel hardness (HRB) | 0.65 |
Finish | Shiny |
UV resistance | High |
System operational temperature | -40°F à 122°F (-40°C à 50°C) |
Steel treatment | Nickel electroplating |
Manufacturing technique | Pressed and deburring |
Striations for grip | 4 |
