HJ-6

Pivot tee joint set

Pivot tee joint set steel bk
USD$2.26

In stock

  • Compatible with 28 mm pipes
  • Assembly required

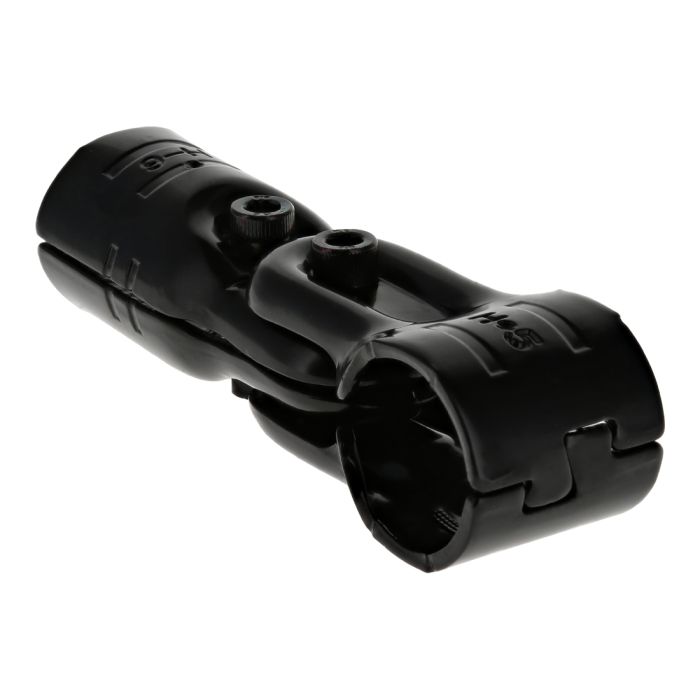

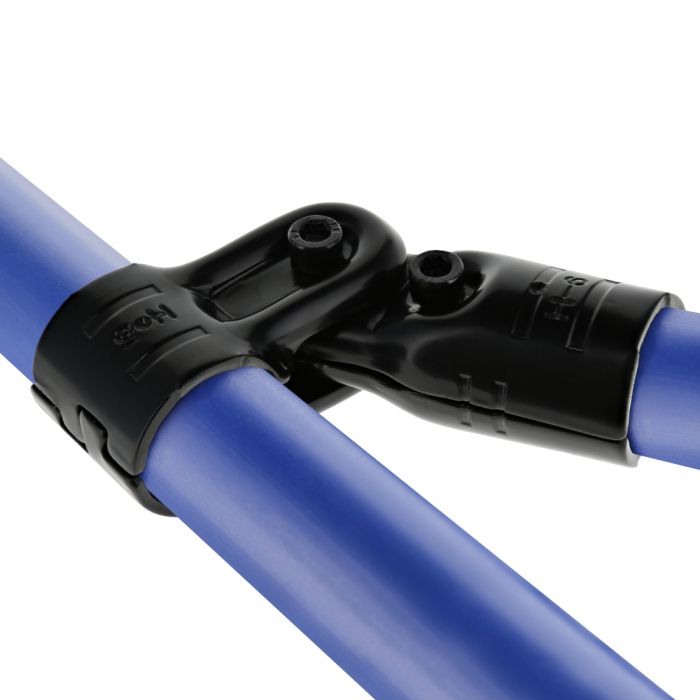

The HJ-6 is a black metal joint set that allows you to create a two-pipe intersection with an adjustable angle. This joint set is used in many applications to create an opening or bracing.

To assemble an HJ-6 you need to combine two H-5 and two H-6 together with two M6-25B bolts and two M6-N nuts.

Assembly tip:
This joint set will create a distance of an inch between the two pipes. This distance is used for supporting pannels or manufacturing parts. It is also possible to use the HJ-6 to create a door or a folding table hinge. Before considering the HJ-6, we suggest thinking of using other joint sets: HJ-12 or HJ-23

Technical Information:
This joint set is designed with 8 striations for a better grip on the plastic coating of the 28 mm pipes.

Installation Steps
See the installation steps tab to view how to assemble this connector.

Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: HJ-6NP

Want to reuse parts of your old system?
The HJ-6 Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

More Information
Best SellerYes
Needed parts2x H-5 + 2x H-6 + 2x M6-25B + 2x M6-N
Length inches3 1/8 in (79 mm)
Width inches1 5/16 in (33 mm)
External height inches1 5/16 in (33mm)
External width inches4 5/8 in (117mm)
External depth inches1 5/16 in (33mm)
Steel thickness inches1/8 in (2.5 mm)
Unit weight pounds0.497 lbs (0.226 kg)
Compatible joint systemsCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
None compatible joint systemsFastube, Trilogiq (28.6 mm)
RoHS certificationYes
RecyclableYes
Compatible pipe systemsCreform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)
None compatible pipe systemsTrilogiq (28.6 mm)
Frequency of useModerate
ReusableYes
Reusable partsYes
range of motion180°
Electric conductivity (ESD)No
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)68-75 HRB
FinishGlossy
UV resistanceHigh
System operational temperature-148°F to 572°F (-100°C to 300°C)
Steel treatmentBlack cathodic electrodeposition (Ecoating)
Manufacturing techniqueStamping and deburring
Striations for grip8 striation grip lines
Positioning guide4 positioning guide lines
Additional reinforcement holeNone
  1. Ensure you have the following parts:
    • 2x H-5
    • 2x H-6
    • 2x M6-25B bolts
    • 2x M6-N nuts
    • 2x 28mm pipes of your choice
    • 1x T-HANDLE 5mm hex key
  2. Take the two H-6 connectors and group them around the first pipe.
  3. Fix the connectors by placing an M6-25B bolt with an M6-N nut in the corresponding openings until it's firmly attached to the pipe. A force between 12-14 Nm is recommended for this step. Make sure to place the bolts on the most accessible side.
  4. Group together the two H-5 connectors around the second pipe and insert the first pipe with the attached H-6's. Loosely tighten with the remaining M6-25B bolt and M6-N nut through both H-5 and H-6.
  5. Position into the desired angle and tighten completely until the HJ-6 joint set if firmly attached to the two pipes. A force between 12-14 Nm is recommended for this step.
