Pivot tee joint set
In stock
- Compatible with 28 mm pipes
- Assembly required; pieces sold separately
- Joint set with antistatic properties (ESD)
The HJ-6NP is a chrome-plated joint set with antistatic properties (ESD) that allows creating a two-pipe intersection with an adjustable angle. This joint set is used in many applications to create an opening or bracing.
To assemble an HJ-6NP you need to combine two H-5NP and two H-6NP together with two M6-25BWZ bolts and two M6-NWZ nuts.
Assembly tip:
This joint set will create a distance of an inch between the two pipes. This distance is used for supporting pannels or manufacturing parts. It is also possible to use the HJ-6NP to create a door or a folding table hinge. Before considering the HJ-6NP, we suggest thinking of using other joint sets: HJ-12NP or HJ-23NP
Technical Information:
This joint set is designed with 8 striations for a better grip on the plastic coating of the 28 mm pipes.
Installation Steps
See the installation steps tab to view how to assemble this connector.
Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: HJ-6
Want to reuse parts of your old system?
The HJ-6NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
| Needed parts | 2x H-5NP + 2x H-6NP + 2x M6-25BWZ + 2x M6-NWZ |
|---|---|
| Length inches | 3 1/8 in (79 mm) |
| Width inches | 1 5/16 in (33 mm) |
| External height inches | 1 5/16 in (33mm) |
| External width inches | 4 5/8 in (117mm) |
| External depth inches | 1 5/16 in (33mm) |
| Steel thickness inches | 1/8 in (2.5 mm) |
| Unit weight pounds | 0.497 lbs (0.226 kg) |
| Compatible joint systems | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Noncompatible joint systems | Fastube, Trilogiq (28.6 mm) |
| RoHS certification | Yes |
| Recyclable | Yes |
| Compatible pipe systems | Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm) |
| Noncompatible pipe systems | Trilogiq (28.6 mm) |
| Frequency of use | Moderate |
| Reusable | Yes |
| Reusable parts | Yes |
| range of motion | 180° |
| Electric conductivity (ESD) | Yes |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 68-75 HRB |
| Finish | Shiny |
| UV resistance | High |
| System operational temperature | -148°F to 572°F (-100°C to 300°C) |
| Steel treatment | Chrome plating |
| Manufacturing technique | Stamping and deburring |
| Striations for grip | 8 striation grip lines |
| Positioning guide | 4 positioning guide lines |
| Additional reinforcement hole | None |

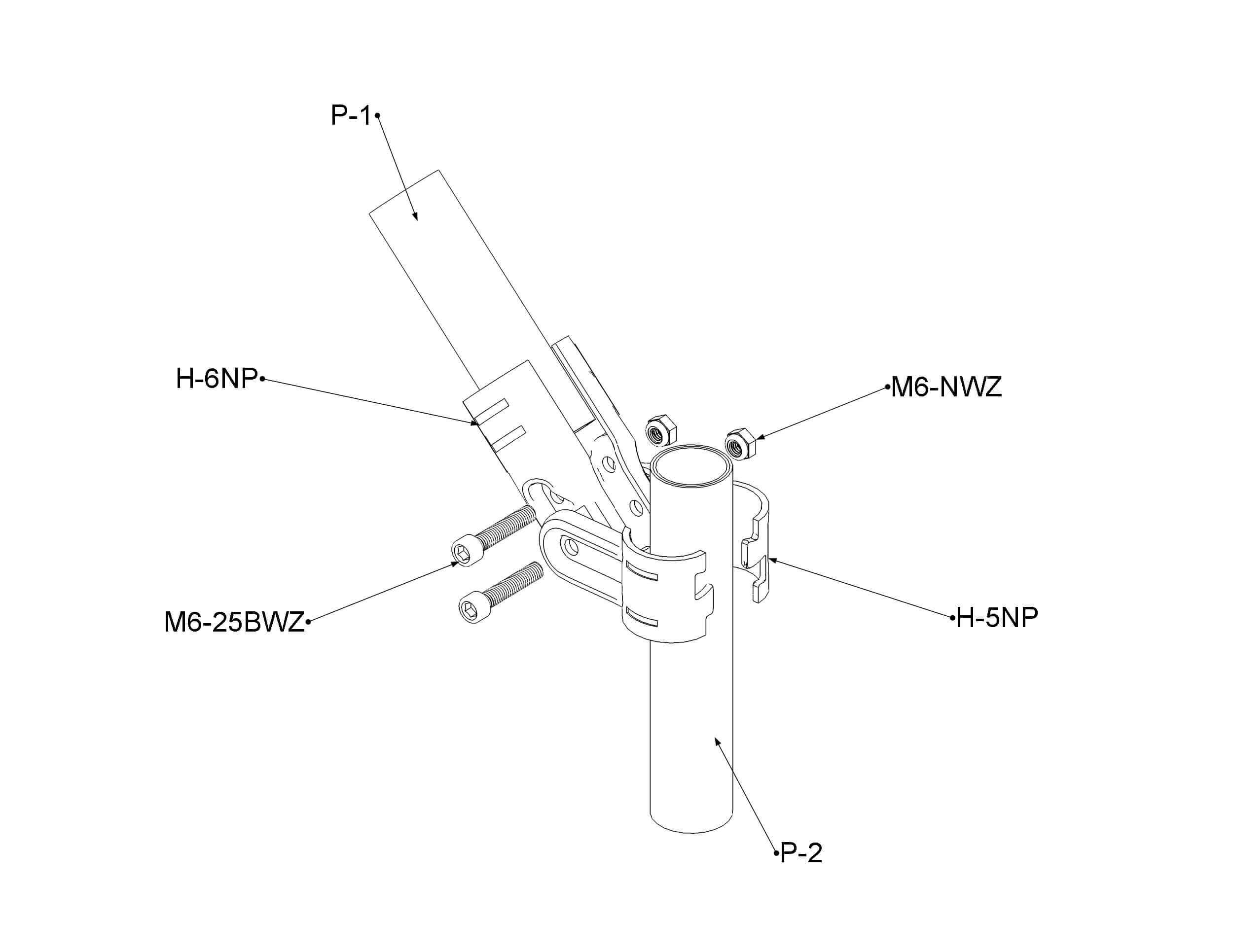

- Ensure you have the following parts:
- Take the two H-6NP connectors and group them around the first pipe.
- Fix the connectors by placing a bolt with a nut in the corresponding openings until it's firmly attached to the pipe.
- Group together the two H-5NP connectors around the second pipe and insert the first pipe with the attached H-6NP's. Loosely tighten with the remaining bolt and nut through both H-5NP and H-6NP.
- Position into the desired angle and tighten completely until the HJ-6NP joint set is firmly attached to the two pipes.
