HJ-1NP

Tee joint set

Tee joint set steel cr
USD$1.45

In stock

  • Compatible with 28 mm pipes
  • Assembly required
  • Joint set with antistatic properties (ESD)

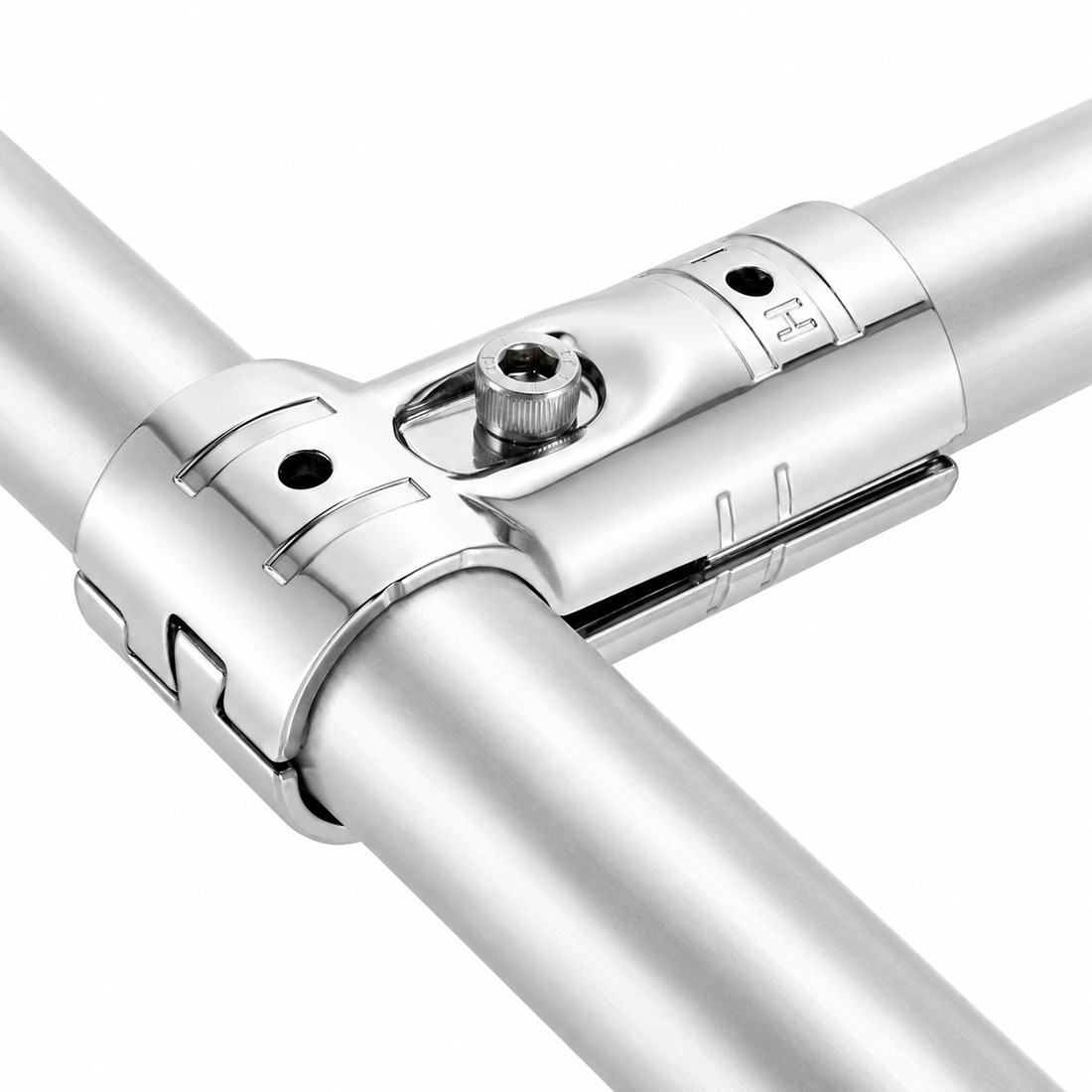

The HJ-1NP is a chrome-plated joint set with antistatic properties (ESD). This piece allows you to connect two 28 mm pipes in a T-shape or to create a corner. You can rotate this connector up to 360-degree before fixing it to make 45- or 90-degree support for surfaces or just for supporting your products.

This joint set was designed for a quick and easy installation. This piece is the simplest to assemble and the most commonly used in the entire Flexpipe system. Applications for this connector are numerous; from corners to separations, pegs, 45-degree supports and supports for accessories like the AW-HOLDER. To assemble an HJ-1NP you need to put two H-1NP together with an M6-25BWZ bolt and an M6-NWZ nut. You should always keep a box of these three parts in inventory since they are going to be used in 95% of your Flexpipe structures.

Technical Information:
This joint set is designed with 8 striations for a better grip on the plastic coating of the 28 mm pipes. It also includes 4 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw F-A85/8, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.

Installation Steps
See the installation steps tab to view how to assemble this connector.

Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: HJ-1

Want to reuse parts of your old system?
The HJ-1NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

More Information
Best SellerNo
Needed parts2x H-1NP + 1x M6-25BWZ + 1x M6-NWZ
Length inches3 1/4 in (83 mm)
Width inches1 5/16 in (33 mm)
External height inches3 1/4 in (83mm)
External width inches1 5/16 in (33mm)
External depth inches1 5/16 in (33mm)
Steel thickness inches1/8 in (2.5 mm)
Unit weight pounds0.315 lbs (0.143 kg)
Compatible joint systemsCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
None compatible joint systemsFastube, Trilogiq (28.6 mm)
RoHS certificationYes
RecyclableYes
Compatible pipe systemsCreform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)
None compatible pipe systemsTrilogiq (28.6 mm)
Frequency of useVery High
ReusableYes
Reusable partsYes
Electric conductivity (ESD)Yes
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)68-75 HRB
FinishShiny
UV resistanceHigh
System operational temperature-148°F to 572°F (-100°C to 300°C)
Steel treatmentChrome plating
Manufacturing techniqueStamping and deburring
Striations for grip8 striation grip lines
Positioning guide4 positioning guide lines
Additional reinforcement hole4 reinforcement holes
  1. Ensure you have the following parts:
    • 2x H-1NP
    • 1x M6-25BWZ bolts
    • 1x M6-NWZ nuts
    • 2x 28mm ESD pipes of your choice
    • 1x T-HANDLE 5mm hex key
  2. Put the two H-1NP together around the first pipe.
  3. Loosely tighten the M6-25BWZ bolt and the M6-NWZ nut by putting them in the corresponding opening of the HJ-1NP. Make sure to put the bolt on the most accessible side.
  4. Insert the second pipe between the two H-1NP at the opposite side of the joint, between the first and second guidelines.
  5. Tighten completely the M6-25BWZ and the M6-NWZ together until the HJ-1NP is firmly attached to the pipes. A force between 12-14 Nm is recommended for this step.
