Tool holder
- Maximize work space
- Holds a variety of tools
- (ESD) compatible

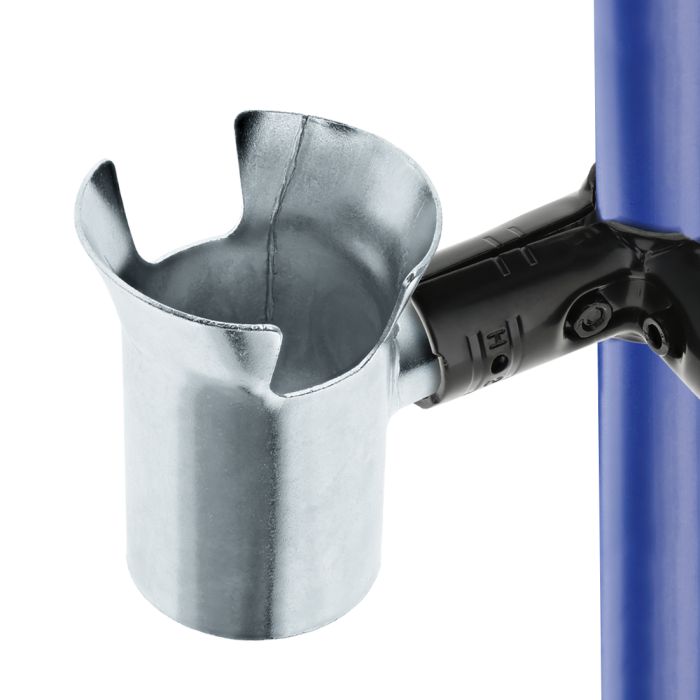

The AW-HOLDER is a metal tool holder, use it to free up valuable work space.
This product is great for implementing sleek storage in your Flexpipe structures, this accessory can be positioned nearly any way you want.
Install it with the joint set of your choice. Most of the time, we use the HJ-1 for this process. However, 80% of the joint sets are suitable for installing the holder.
Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK
Installation Steps:
See the installation steps tab to view how to install the AW-HOLDER
Want to reuse parts of your old system?
The AW-HOLDER is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and non-compatible with our parts.
| Units per box (sold separately) | 8 |
|---|---|
| Height inches | 3 3/16 in (81mm) |
| Width inches | 4 in (102mm) |
| Depth inches | 3 3/16 in (81mm) |
| Unit weight pounds | 0.374 lbs (0.170 kg) |
| Box dimensions inches | 11 X 9 X 5 in (279mm X 229mm X 127mm) |
| Recyclable | Yes |
| Compatible pipe systems | Flexpipe, Creform, Fastube |
| Noncompatible pipe systems | Trilogiq |
| Reusable | Yes |
| Electric conductivity (ESD) | Yes |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 0.65 |
| Finish | Glossy |
| System operational temperature | -58°F à 185°F (-50°C à 85°C) |
| Steel treatment | Galvanised |
| Manufacturing technique | Folded and welded |
- Ensure you have the following parts:
- 1x AW-HOLDER
- 1x HJ-1 joint set
- 1x T-HANDLE 5 mm allen key
- Please reference HJ-1 installation steps 1 to 4.
- Insert the AW-HOLDER in the HJ-1 joint.
- Tighten completely the M6-25B bolt and M6-N nut together until the HJ-1 is firmly attached to the pipe along with the AW-HOLDER. (12-14 N.m torque)
