Corner joint set
In stock
- Compatible with 28 mm pipes
- Assembly required

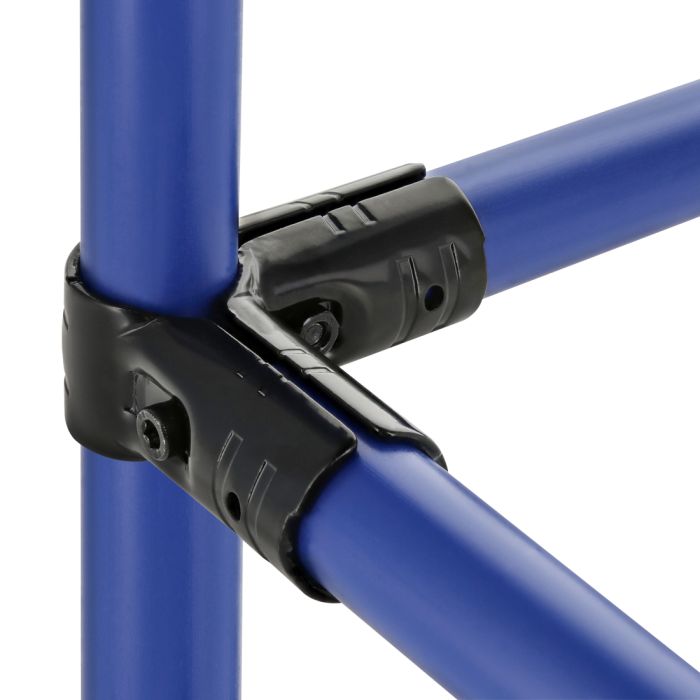

The HJ-2 is a black metal joint set that allows you to create a three-pipe intersection or a corner. This joint set will probably be used for most of your structure's external corners and structural separations on two perpendicular sides. Other applications of the HJ-2 include the creation of more complex and ergonomic handles, the creation of V-shape racking support or a V-shape roof. It is often associated with the AI-CORNER accessory when positioning a surface on external sides.
To assemble an HJ-2 you need to combine an H-2 and an H-3 together with two M6-25B bolts and two M6-N nuts.
Technical Information:
This joint set is designed with 10 striations for a better grip on the plastic coating of the 28 mm pipes. It also includes 8 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw F-A85/8, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.
Installation Steps
See the installation steps tab to view how to assemble this connector.
Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: HJ-2NP
Want to reuse parts of your old system?
The HJ-2 Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
| Image Tag | /b/e/bestseller_2.png |
|---|---|
| Needed parts | 1x H-2 + 1x H-3 + 2x M6-25B + 2x M6-N |
| Length inches | 2 9/16 in (65 mm) |
| Width inches | 1 5/16 in (33 mm) |
| External height inches | 3 1/4 in (83mm) |
| External width inches | 3 1/4 in (83mm) |
| External depth inches | 1 5/16 in (33mm) |
| Steel thickness inches | 1/8 in (2.5 mm) |
| Unit weight pounds | 0.510 lbs (0.232 kg) |
| Compatible joint systems | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Noncompatible joint systems | Fastube, Trilogiq (28.6 mm) |
| RoHS certification | Yes |
| Recyclable | Yes |
| Compatible pipe systems | Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm) |
| Noncompatible pipe systems | Trilogiq (28.6 mm) |
| Frequency of use | Very High |
| Reusable | Yes |
| Reusable parts | Yes |
| Electric conductivity (ESD) | No |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 68-75 HRB |
| Finish | Glossy |
| UV resistance | High |
| System operational temperature | -148°F to 572°F (-100°C to 300°C) |
| Steel treatment | Black cathodic electrodeposition (Ecoating) |
| Manufacturing technique | Stamping and deburring |
| Striations for grip | 10 striation grip lines |
| Positioning guide | 8 positioning guide lines |
| Additional reinforcement hole | 5 reinforcement holes |
- Ensure you have the following parts:
- Fix the H-3 connector to the desired location on the first pipe.
- Put the H-2 connector in the inner corner of the HJ-2.
- Loosely tighten the M6-25B and the M6-N in the corresponding openings of the HJ-2.
- Insert the second and third pipes within the openings of the HJ-2, and between the first and the second positioning guidelines.
- Tighten completely the M6-25B and the M6-N together until the HJ-2 is firmly attached to the pipes.
