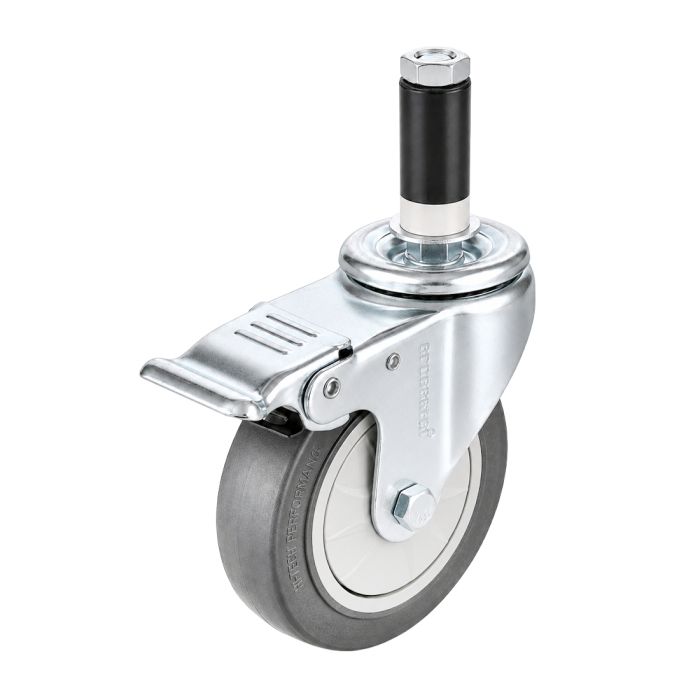

4'' Swivel Caster Brake Stem
- 4 inches (100 mm) diameter wheel
- 250 pounds (113 kg) loading capacity
- 2.5mph maximum speed
4 inches swivel stem caster with brake and a loading capacity of 250 pounds (113 kg) and a maximum speed of 2.5mph. The stem-mount is made with a rubber bushing that expands into a 28 mm steel pipe to keep the wheel in place. See the Installation Steps tab for more information on how to install W-4ESB casters.
Use the F-BUS component when this caster is used with the EP-96-ST pipe.
Bolt M12 (12 mm) Length 2 1/4" (57.15 mm)
4 inches casters are made for:
- More or less long trips (30 to 50 feet)
- Frequent use (20 to 50 times a day)
- Carts weighting less than 400 pounds
- Narrow carts (between 16 and 24 in. wide)
W-4ESB has an electric conductivity version (ESD) : EW-4ESB
For more frequent use or longer trips, we recommend considering the W-6PSB caster.
For carts that will go outside, roll on ramps or damaged floors, it's preferable to use 6 inches casters.
All casters are equipped with a precision ball bearing.
| Units per box (sold separately) | 32 |
|---|---|
| Unit weight pounds | 1.9 lbs (0.855 kg) |
| Box dimensions inches | L18 X W11 X H12 in (L460 X W280 X H300 mm) |
| Wheels diameter inches | 4'' (100mm) |
| Wheel diameter inches | 4 in (100 mm) |
| Total height inches | 5 1/8 in (130 mm) |
| Tread width inches | 1 1/8 in (28 mm) |
| RoHS certification | Yes |
| Recyclable | Yes |
| Reusable | Yes |
| Recommend surfaces | Asphalt, pavement, ceramic, carpet, flat steel, stone, wood, brick, linoleum, granit |
| Surfaces marking | None |
| Noise | None |
| Electric conductivity (ESD) | No |
| Corrosion resistance | Good |
| System operational temperature | -22°F to 158°F (-30°C to 70°C) |
| Loading capacity | 250 lbs (113 Kg) |
| Bearing type | Precision ball bearing |
| Wheel material | Thermoplastic Rubber (TPR) |
| Tread hardness | 70A |
| Wheel finish | Matte |
| Brake type | Pedal brake |
| Wheel type | Swivel |
| Radius | 4 in (100 mm) |
| Maximum speed | 2.5 mph |
| Oil resistance | Good |
- Ensure you have the following parts:
- 1x W-3ESB
- 1x 28mm pipe of your choice
- 1x Wrench
- Ensure that the structure is levelled when supported by the pipes that will be wheeled. Otherwise, the height difference might cause the structure to sway.
- Flip the structure for a better access to the bottom pipes.
- Engage the wheel brake to lock the wheel.
- Tighten the nut located on the top of the stem for the rubber bushing to expend until it barely fits inside the pipe.
- Insert the wheel rod completely inside the pipe. Help yourself with a mallet if needed.
- Rotate the wheel clockwise until it grips firmly inside the pipe.
