Track mount drop stop
- Electric conductivity (ESD)
- Track mount with a 1-5/16 in drop stopper
- Compatible with other 1 1/16 in (28mm) pipe and joint systems

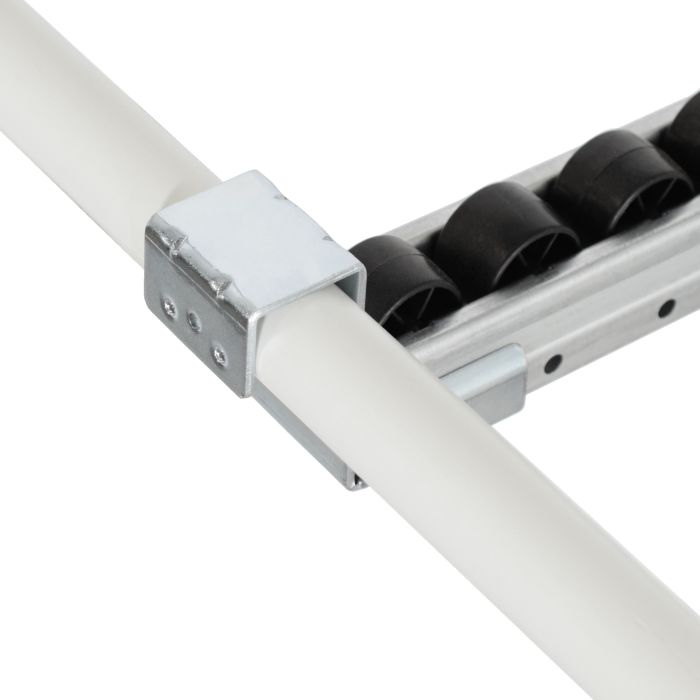

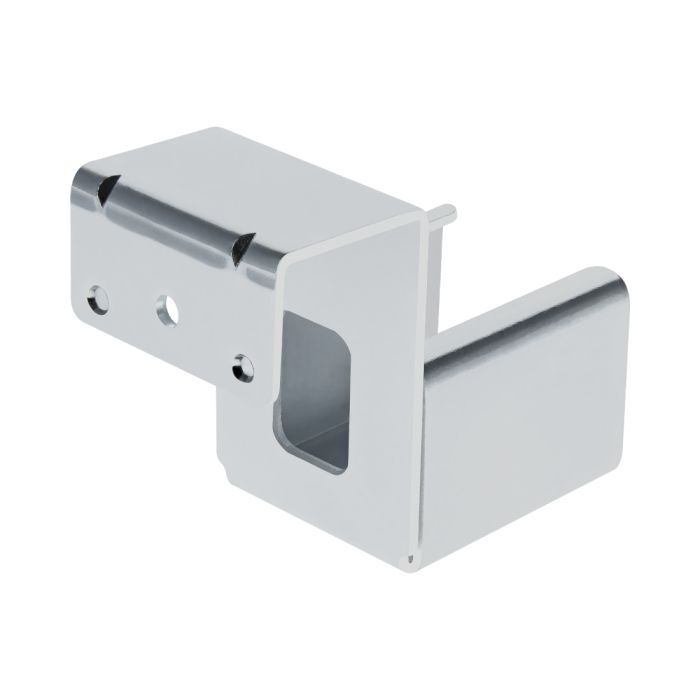

The R40-DS is an ESD steel zinc conveyor track mount with a 1-5/16 in drop stopper. This mount will make your roller track tilted so that it makes a small angle, even if the pipes are parallel to the track. Use this part as an end mount to make heavyweight containers stops.
When you are using lightweight containers, you won't need an angle that creates too much acceleration, so we recommend using R40-TS.
The anchoring section has two little bumps to make sure the support grips the tube firmly. We recommend using an F-A85/8 screw to secure the support on the pipe.
All Flexpipe conveyor R40 accessories are engineered to perfectly fit the R40-RT96.
The Flexpipe roller track and its accessories will work on any 28mm pipe and joint systems. Some systems don't have the same conveyor size, so be sure to check the spec sheet to see if your old conveyor parts are compatible.
Learn more on different accessories configuration on the How to build modular flow racks page. Every part of the Flexpipe conveyor system is ESD, allowing you to build antistatic structures for the transportation of electronics and electrical components.
Don't know where to begin? Our flow rack starter kit could be really helpful!
|Units per box||25|
|Length inches||3 1/16 in (78 mm)|
|Height inches||2 3/4 in (70mm)|
|Width inches||1 13/16 in (45.6 mm)|
|Depth inches||1 3/8 in (35.5 mm)|
|Unit weight pounds||0.40 lb (0.183 kg)|
|Box dimensions inches||11 X 9 X 5 po (279mm X 229mm X 127mm)|
|Total height inches||2 7/8 in (72.3 mm)|
|Compatible support systems||Creform, NIS, C Tek, Fastube|
|Compatible conveyor systems||Creform, NIS, C Tek, Fastube small wheel conveyors|
|None compatible conveyor systems||Trilogiq|
|Compatible pipe systems||Flexpipe, Creform, Fastube|
|None compatible pipe systems||Trilogiq|
|Electric conductivity (ESD)||Yes|
|Material||Acier roulé à chaud (SPHC)|
|Steel hardness (HRB)||0.65|
|System operational temperature||-148°F to 428°F (-100°C to 220°C)|
|Manufacturing technique||Pressed and deburring|
|Additional reinforcement hole||Yes|
|Load capacity per meter pounds||595 lb (270 kg)|
|Rail material||Hot rolled steel (SPHC)|
- Ensure you have the following parts:
- 1x R40-DS
- 1x F-A85/8
- 1x 28mm pipe
- 1x R40-RT96
- 1x Drill

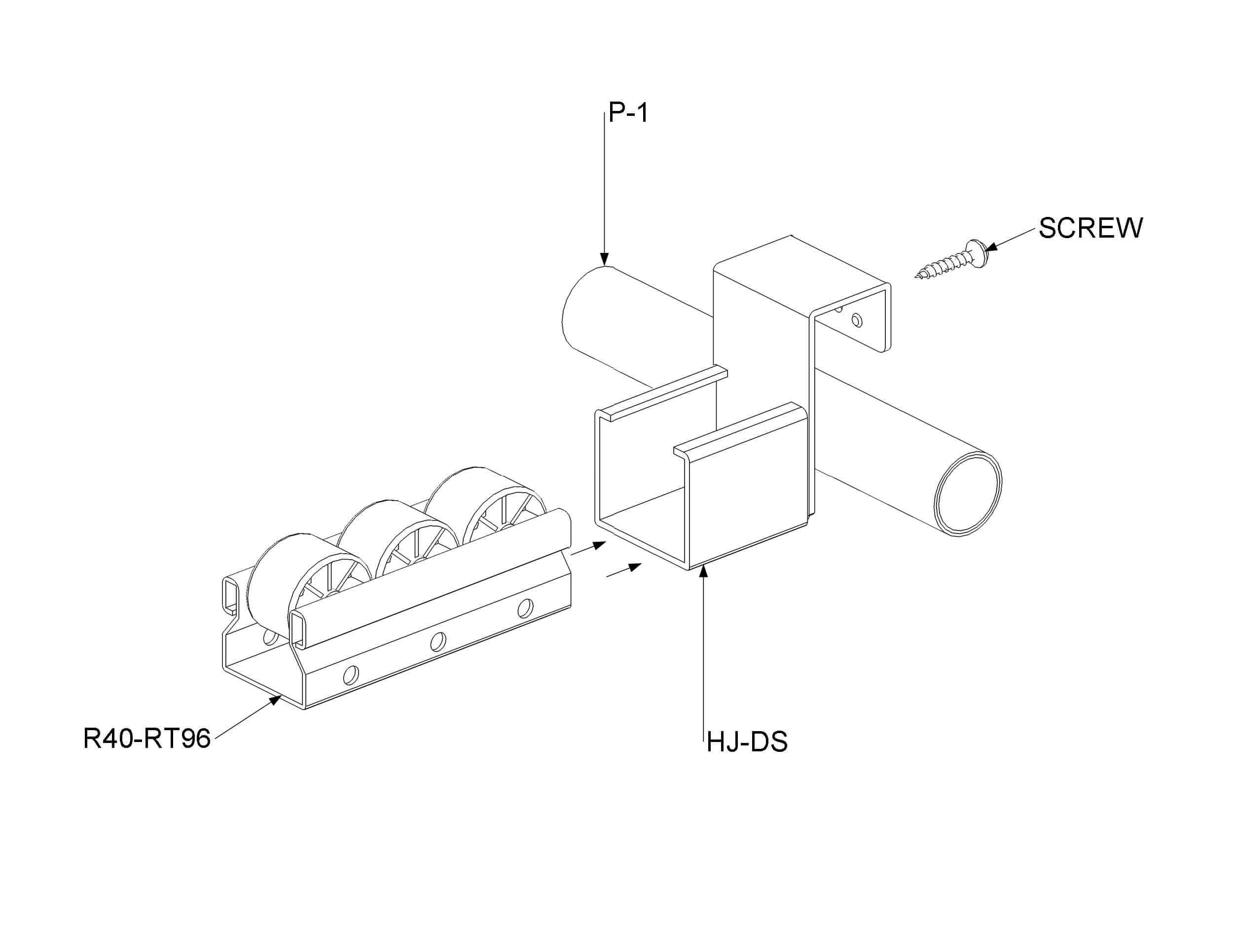

- Insert the R40-RT96 inside the R40-DS.
- Hang the R40-DS on the pipe perpendicularly.
- Screw a F-A85/8 in the corresponding opening through the pipe to fix the R40-DS mount.
Here is a good rule of thumb for the R40-DS. If you need to double your pipe to reinforce a structure, you probably need to put a drop stop instead of the tab stop R40-TS.
