SKU
R40-MS

Track mount start

Track mount start steel zinc
USD$1.40
  • Electric conductivity (ESD)
  • Compatible with other 1 1/16 in (28mm) pipe and joint systems

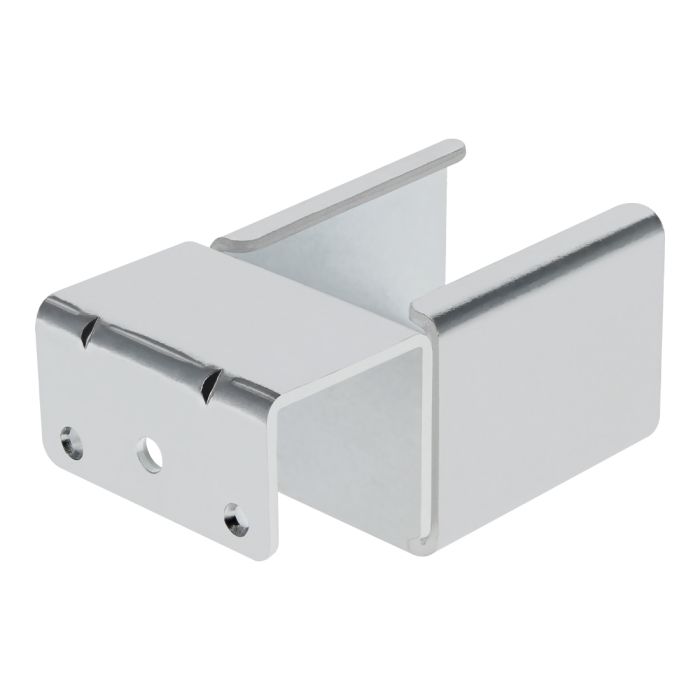

The R40-MS is an ESD steel zinc conveyor mount commonly used at the starting point of roller tracks. This item serves as an anchor between the conveyor and a perpendicular pipe. It is also used when creating L-shape and Z-shape flow racks.

The anchoring section has two little bumps to make sure the support grips the tube firmly. We recommend using an F-A85/8 screw to secure the support on the pipe.

All Flexpipe conveyor R40 accessories are engineered to perfectly fit the R40-RT96

The Flexpipe roller track and its accessories will work on any 28mm pipe and joint systems. Some systems don't have the same conveyor size, so be sure to check the spec sheet to see if your old conveyor parts are compatible.

Learn more on different accessories configuration on the How to build modular flow racks page. Every part of the Flexpipe conveyor system is ESD, allowing you to build antistatic structures for the transportation of electronics and electrical components.

Don't know where to begin? Our flow rack starter kit could be really helpful!

More Information
Best SellerYes
Units per box30
Length inches3 1/16 in (78 mm)
Height inches1 5/8 in (41mm)
Width inches1 13/16 in (45.6 mm)
Depth inches1 3/8 in (35.5 mm)
Unit weight pounds0.34 lb (0.16 kg)
Box dimensions inches11 X 9 X 5 po (279mm X 229mm X 127mm)
Total height inches1 3/8 in (35.5 mm)
Compatible support systemsCreform, NIS, C Tek, Fastube
Compatible conveyor systemsCreform, NIS, C Tek, Fastube small wheel conveyors
None compatible conveyor systemsTrilogiq
RecyclableYes
Compatible pipe systemsFlexpipe, Creform, Fastube
None compatible pipe systemsTrilogiq
ReusableYes
Electric conductivity (ESD)Yes
MaterialAcier roulé à chaud (SPHC)
Steel hardness (HRB)0.65
FinishShiny
System operational temperature-148°F to 428°F (-100°C to 220°C)
Steel treatmentGalvanized
Manufacturing techniquePressed and deburring
Additional reinforcement holeYes
Load capacity per meter pounds712 lb (323 kg)
Rail materialHot rolled steel (SPHC)
  1. Ensure you have the following parts:
    • 1x R40-MS
    • 1x F-A85/8
    • 1x 28mm pipe
    • 1x R40-RT96
    • 1x Drill
  2. Insert the R40-RT96 inside the R40-MS.
  3. Hang the R40-MS on the pipe perpendicularly.
  4. Screw a F-A85/8 in the corresponding opening through the pipe to fix the R40-MS mount.
