8' center roller guide
- Electric conductivity (ESD)
- Polyethylene central guide for flow rack's containers
- Compatible with other 1 1/16 in (28mm) pipe and joint systems

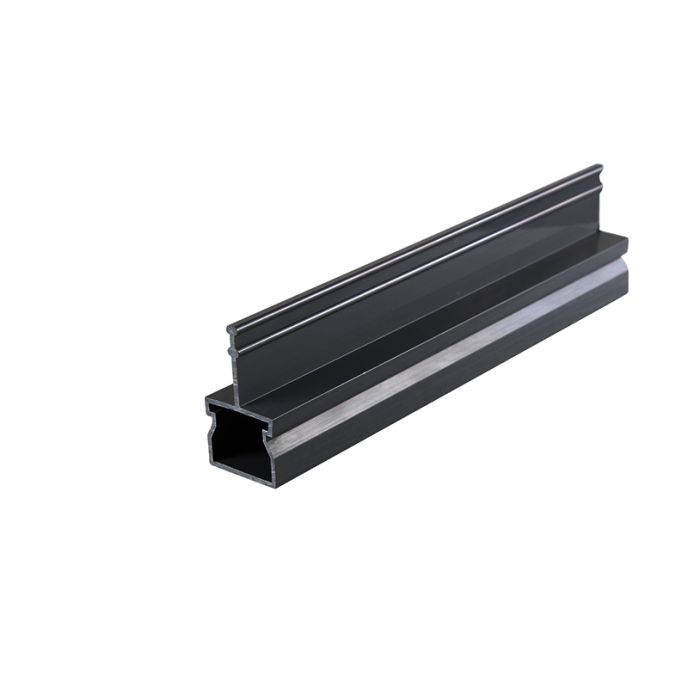

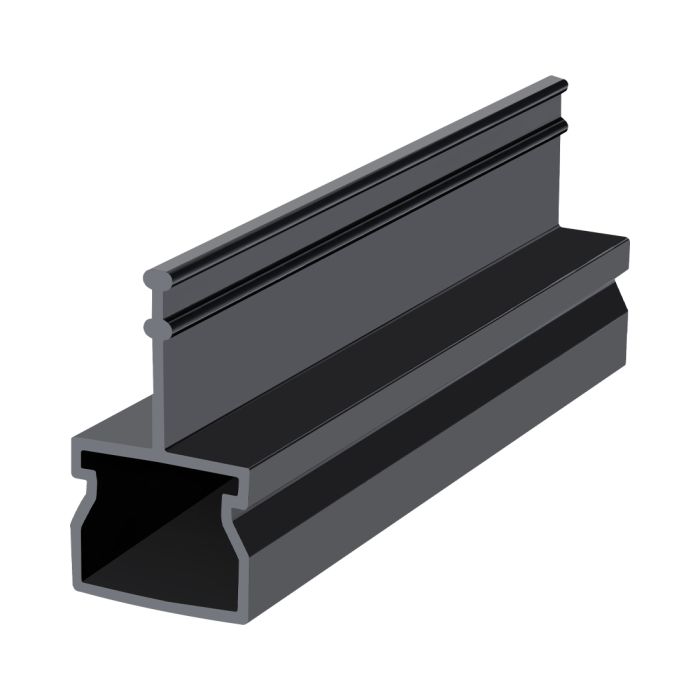

R40-CGUIDE is a central 96 inches long black polyethylene ESD guide for containers. This part is used for keeping containers to move straight on the rails of a long flow rack.
If you have an uneven floor and adding adjustable feet are not enough to level your structures completely, the R40-GUIDE is the perfect solution to make sure your containers move in the direction you intended.
R40-CGUIDE is used the same way as an R40-RT96. Which mean you have to fix it to your structure with the R40 mounts of your choice.
We suggest you watch this video to understand how to use the R40-CGUIDE.
The Flexpipe roller track and its accessories will work on any 28mm pipe and joint systems. Some systems don't have the same conveyor size, so be sure to check the spec sheet to see if your old conveyor parts are compatible.
Learn more on different accessories configuration on the How to build modular flow racks page. Every part of the Flexpipe conveyor system is ESD, allowing you to build antistatic structures for the transportation of electronics and electrical components.
Don't know where to begin? Our flow rack starter kit could be really helpful!
|Units per box (sold separately)||6|
|Length inches||96 in (2438 mm)|
|Width inches||1 9/16 in (40 mm)|
|Depth inches||1 5/16 in (33.5 mm)|
|Unit weight pounds||5.50 lb (2.50 kg)|
|Box dimensions inches||96 X 7 X 5 po (2438mm X 178mm X 127mm)|
|Total height inches||2 3/4 in (70.5 mm)|
|Compatible support systems||Creform, NIS, C Tek, Fastube|
|Compatible conveyor systems||Creform, NIS, C Tek, Fastube small wheel conveyors|
|Noncompatible conveyor systems||Trilogiq|
|Compatible pipe systems||Flexpipe, Creform, Fastube|
|Noncompatible pipe systems||Trilogiq|
|Electric conductivity (ESD)||Yes|
|System operational temperature||-4°F to 104°F (-20°C to 40°C)|
|Manufacturing technique||Injection molding|
|Additional reinforcement hole||No|
- Ensure you have the following parts:
- 1x R40-CGUIDE
- 1x R40-RT96
- 1x Saw
- Cut the R40-CGUIDE to the desired length. Don't forget to take off the measurement of the mounts - approximately 2 inches per mount.
- Insert the conveyor rail into the guide by sliding the R40-RT96 inside the R40-CGUIDE.
