R40-TU

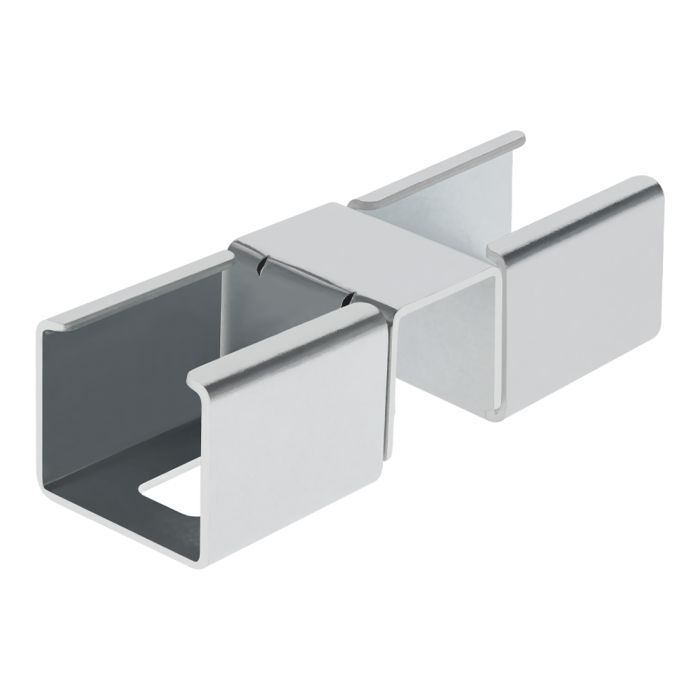

Track union

Track union steel zinc
USD$3.62
Stocks
Farnham: 4710
Los Angeles: 1074
Lawrenceville: 754
  • Electric conductivity (ESD)
  • Compatible with other 1 1/16 in (28mm) pipe and joint systems

The R40-TU is an ESD steel zinc track union used to make conveyor extensions. The perpendicular pipe junction allows for an angle of inclination up to 45 degrees by folding the conveyor support. If you want your conveyor to be in a straight line, you should use the R40-CS.

However, if you want a bigger angle drop, you should double your pipes and add two R40-MS on each side. See the Tips tab for more details.

This union track will not slow down the containers, because the space connecting the two rails is small enough not to impact the movement velocity.

All Flexpipe conveyor R40 accessories are engineered to perfectly fit the R40-RT96.

The Flexpipe roller track and its accessories will work on any 28mm pipe and joint systems. Some systems don't have the same conveyor size, so be sure to check the spec sheet to see if your old conveyor parts are compatible.

Learn more on different accessories configuration on the How to build modular flow racks page. Every part of the Flexpipe conveyor system is ESD, allowing you to build antistatic structures for the transportation of electronics and electrical components.

Don't know where to begin? Our flow rack starter kit could be really helpful!

More Information
Units per box (sold separately)20
Length inches5 1/16 in (128 mm)
Height inches1 5/8 in (41mm)
Width inches1 5/8 in (41 mm)
Depth inches1 3/8 in (35.5 mm)
Unit weight pounds0.61 lb (0.275 kg)
Box dimensions inches11 X 9 X 5 po (279mm X 229mm X 127mm)
Total height inches1 3/8 in (35.5 mm)
Compatible support systemsCreform, NIS, C Tek, Fastube
Compatible conveyor systemsCreform, NIS, C Tek, Fastube small wheel conveyors
Noncompatible conveyor systemsTrilogiq
RecyclableYes
Compatible pipe systemsFlexpipe, Creform, Fastube
Noncompatible pipe systemsTrilogiq
ReusableYes
Electric conductivity (ESD)Yes
MaterialAcier roulé à chaud (SPHC)
Steel hardness (HRB)0.65
FinishShiny
System operational temperature-148°F to 428°F (-100°C to 220°C)
Steel treatmentGalvanized
Manufacturing techniquePressed and deburring
Additional reinforcement holeNo
Rail materialHot rolled steel (SPHC)
  1. Ensure you have the following parts:
  2. Insert the two R40-RT96 in each side of the R40-TU.
  3. Hang the R40-TU on the pipe perpendicularly.
  4. Fasten the self-tapping screw in the middle of the R40-TU so it will not move on the pipe
