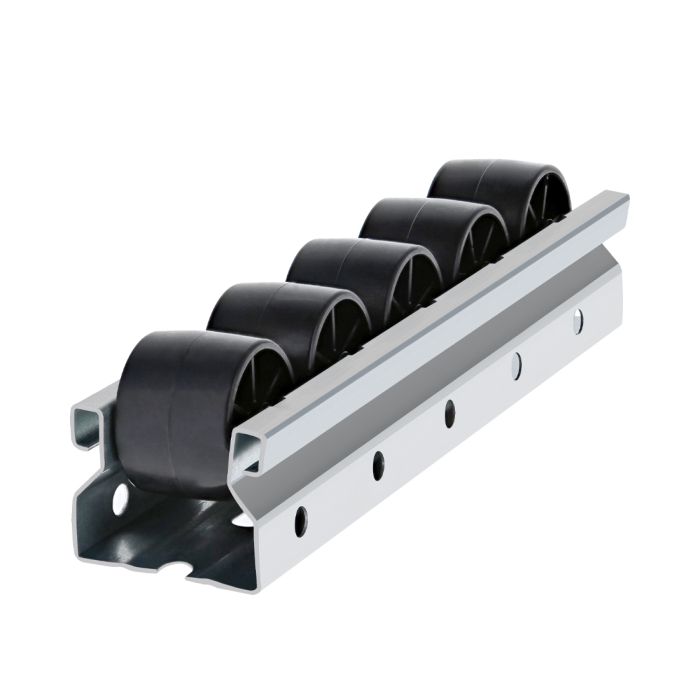

The R40-RT96 is an ESD metal conveyor frame with black plastic wheels. To minimize shipping costs and maximize maneuverability, this item is only available in 8-foot (2438mm) long.
The roller track can be installed with multiple accessories to create different slopes and configurations of flow racks. All Flexpipe conveyor R40 accessories are engineered to perfectly fit the R40-RT96.
The Flexpipe roller track and its accessories will work on any 28mm pipe and joint systems. Some systems don't have the same conveyor size, so be sure to check the spec sheet to see if your old conveyor parts are compatible.
Learn more on different accessories configuration on the How to build modular flow racks page.
Every part of the Flexpipe conveyor system is ESD, allowing you to build antistatic structures for the transportation of electronics and electrical components.
Don't know where to begin? Our flow rack starter kit could be really helpful!
|Units per box||6|
|Length inches||96 in (2438 mm)|
|Height inches||1 3/4 in (43.5 mm)|
|Width inches||1 9/16 in (40 mm)|
|Depth inches||1 3/4 po (4,45cm)|
|Unit weight pounds||5.98 lb (2.72 kg)|
|Box dimensions inches||96 X 5 X 3 1/2 po (2438mm X 127mm X 89mm)|
|Wheels diameter inches||1 1/4 in (32 mm)|
|Wheels width millimeter||7/8 in (22 mm)|
|Total height inches||1 3/4 in (43.5 mm)|
|Compatible support systems||Creform, NIS, C Tek, Fastube|
|Compatible conveyor systems||Creform, NIS, C Tek, Fastube small wheel conveyors|
|None compatible conveyor systems||Trilogiq|
|Frequency of use||Very high|
|Electric conductivity (ESD)||Yes|
|Steel hardness (HRB)||0.65|
|System operational temperature||-4°F to 104°F (-20°C to 40°C)|
|Manufacturing technique||Pressed and deburring|
|Additional reinforcement hole||No|
|Load capacity per meter pounds||507 lb (230 kg)|
|Load capacity per wheels pounds||20 lb (9 kg)|
|Rail material||Cold rolled steel (SPCC)|
|Wheels material||Polyethylene (PE)|
