SKU
EP-96-ST

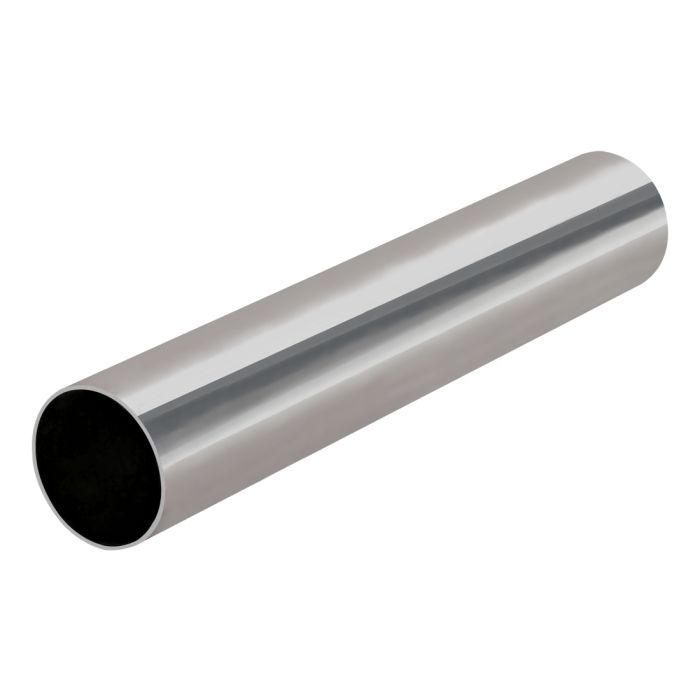

Stainless 8' pipe (ESD)
Stainless steel 8' pipe
USD$11.55
Stocks
Farnham: 3087.5
Los Angeles: 1790
Lawrenceville: 6475
- Electric conductivity (ESD)
- Stainless steel pipe
- 1 1/16 in (28 mm) diameter
- 96 in (2438 mm) length
- Do more with less! Your Flexpipe parts cut and shipped at an advantageous rate with our linear cutting service!
The P-96 is a 1 1/16 in (28 mm) external diameter electric conductivity (ESD) metal pipe. To minimize shipping costs and maximize maneuverability, most of the pipes are 8 feet (2438 mm) long.
It is recommended to consult the page How to calculate the loading capacity before designing your structures.
EP-96-ST has an electric conductivity (ESD) version coated with black polyethylene coating:
- Black: EP-96-BK
All the P-96 pipes of the Flexpipe system are compatible with most other 28 mm systems on the market. This allows any surplus left by your previous systems to be used.
CUTTING SERVICE
Pre-cut service is now available for this product. Read more about our pre-cut service to find out how you can add it to your order.
| Image Tag | /e/s/esd-en_3.png |
|---|---|
| Units per package (sold separately) | 8 |
| Length inches | 96 in (2438.4 mm) |
| Pipe outside diameter inches | 1 1/16 in (27.6 mm ± 0.2 mm) |
| Pipe inside diameter inches | 1 in (26 mm ± 0.2 mm) |
| Steel thickness inches | 1/32 in (0.7mm ± 0.15mm) |
| Unit weight pounds | 2.508 lbs (1.140 kg) |
| Package dimensions inches | 96 1/2 X 4 1/4 X 2 1/4 in (2451 mm X 108 mm X 57 mm) |
| common uses | Carts, Racks, Flow Racks, Workstations, Boards |
| Compatible joint systems | Flexpipe, Creform, Fastube |
| Noncompatible joint systems | Trilogiq |
| Noncompatible joint systems | Trilogiq |
| RoHS certification | Yes |
| Recyclable | Yes |
| Reusable | Yes |
| Electric conductivity (ESD) | Yes |
| Material | Cold-rolled steel (SPCC) |
| Steel hardness (HRB) | 75-80 |
| Steel grade | STS439 |
| Welding process | High frequency welding |
| Coating material | Stainless Steel |
| Finish | Highly reflective |
| UV resistance | Very high |
| System operational temperature | -4°F to 752°F (-20°C to 400°C) |
