4'' Plate Swivel Caster With Brake

Name: 4'' Plate Swivel Caster With Brake
SKU: W-4PSB
Price: 14.43 USD
Availability: InStock

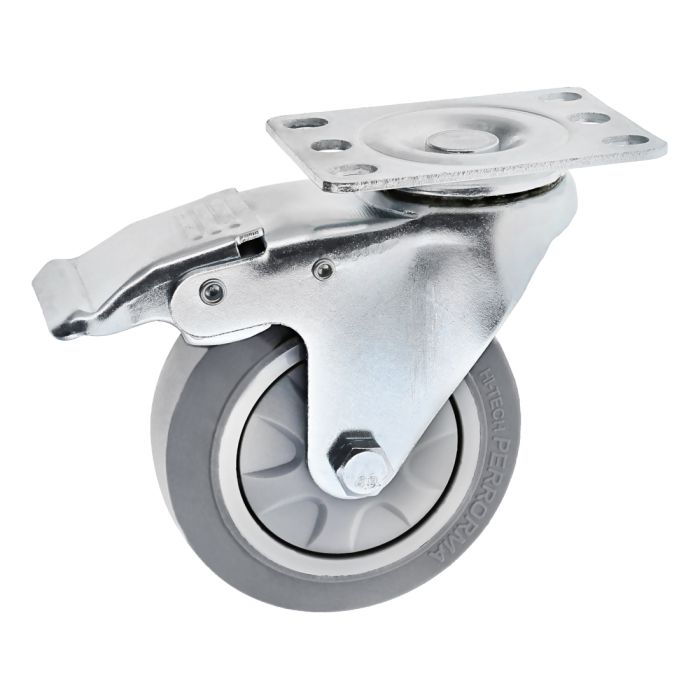

4" swivel plate-mount caster with brake

Be the first to review this product

USD$14.43

Stocks

Farnham: 2107

Los Angeles: 341

Lawrenceville: 1073

4 inches (100 mm) diameter wheel
250 pounds (113 kg) loading capacity
2.5 mph maximum speed

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

4 inches swivel plate caster with lock brake and a loading capacity of 285 pounds (68 kg) and a maximum speed of 2.5 mph. Ensure you have two WF-UP, two WF-LOW, four M8-35B, and four M8-N to fix the caster on your structure. See the Installation Steps tab for more information on how to install W-4PSB casters.

4 inches casters are made for:

Longer trips (100 feet maximum)
Higher frequency trips (100 to 150 times a day)
Carts weighting more than 400 pounds
Larger carts (greater than 24 in. wide and 48 in. long)

For heavy duty uses, we recommend considering the W-6PSB caster.

All casters are equipped with a precision ball bearing.

For carts that will go outside, roll on ramps or damaged floors, it's preferable to use 6 inches casters.

Technical Information

More Information
Image Tag	/b/e/best-seller-en.png
Units per box (sold separately)	40
Unit weight pounds	1.9 lbs (0.855 kg)
Box dimensions inches	L18 X W11 X H12 in (L460 X W280 X H300 mm)
Wheel diameter inches	4 in (100 mm)
Total height inches	5 1/8 in (130 mm)
Tread width inches	1 1/8 in (28 mm)
RoHS certification	Yes
Recyclable	Yes
Reusable	Yes
Recommend surfaces	Asphalt, pavement, ceramic, carpet, flat steel, stone, wood, brick, linoleum, granit
Surfaces marking	None
Noise	None
Electric conductivity (ESD)	No
Corrosion resistance	Good
System operational temperature	-22°F to 158°F (-30°C to 70°C)
Loading capacity	250 lbs (113 Kg)
Bearing type	Precision ball bearing
Wheel material	Thermoplastic Rubber (TPR)
Tread hardness	70A
Wheel finish	Matte
Brake type	Pedal brake
Wheel type	Rigid
Radius	4 in (100 mm)
Maximum speed	2.5 mph
Oil resistance	Good

Installation Steps

Ensure you have the following parts:
- 1x W-4PSB
- 2x WF-UP
- 2x WF-LOW
- 4x M8-35B
- 4x M8-N
- 2x 28mm pipes of your choice
- 1x Wrench
- 1x Ratchet
Ensure that the structure is leveled when supported by the pipes that will be wheeled. Otherwise, the height difference might cause the structure to sway.
Flip the structure for better access to the bottom pipes.
Ensure the pipes are parallel and have 3 1/4 in of center spacing.
Place the two WF-LOW perpendicular on the pipes.
Place the caster on both WF-LOW and align the openings.
Take one WF-UP and regroup it with one of the WF-LOW.
Take two M8-35B bolts and two M8-N nuts and insert them into the corresponding openings. Then lightly tighten them together.
Repeat steps 6 and 7 for the other WF-UP and the bolts and the nuts remaining.
Tighten completely the four M8-35B bolts and the four M8-N nuts in a cross pattern.
