SKU
M8-N

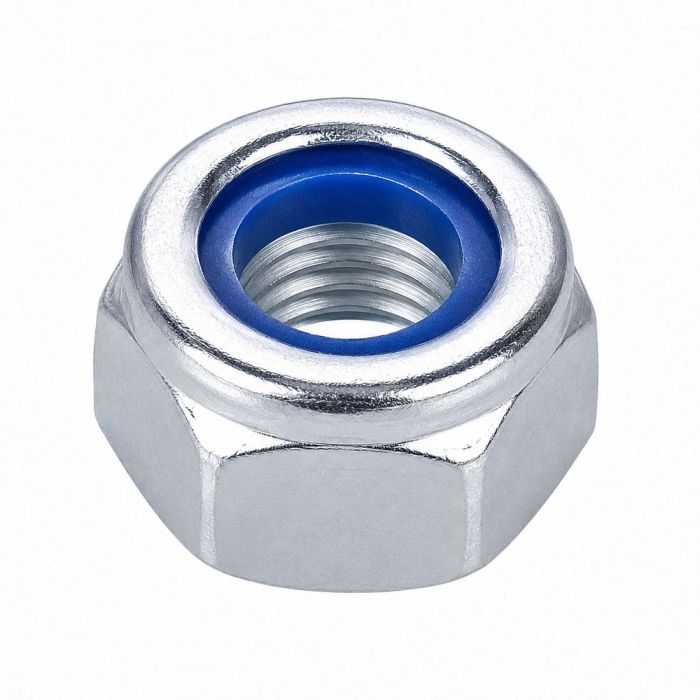

Lock Nut for Caster White Zinc
- Used to assemble 4" and 6" brackets for casters
- Corrosion resistant
- 3000 units per box (please order individually)
USD$0.09
Columbia City (IN):
106378
Los Angeles (CA):
9076
115454 units in stock
Location details
Products You May Also Need
The M8-N is a metal nut that is used in the creation of two different sets of brackets. These brackets are needed to secure four- and six-inch wheels to Flexpipe structures. This part can only be used in the assembly of four- and six-inch brackets.
To create the four-inch bracket set with the M8-N, you need to connect one WF-UP and one WF-LOW with two M8-40B and two M8-N nuts. To build the six-inch bracket set with the M8-N, you need to group together two WF-LARGE with two M8-40B and two M8-N nuts.
This nut is made to fit the M8-40B perfectly. Be sure to look at the installation steps for the W-4PSB, W-4PF, W-6PSB, and W-6PF wheels to see how to use the M8-N.
To create the four-inch bracket set with the M8-N, you need to connect one WF-UP and one WF-LOW with two M8-40B and two M8-N nuts. To build the six-inch bracket set with the M8-N, you need to group together two WF-LARGE with two M8-40B and two M8-N nuts.
This nut is made to fit the M8-40B perfectly. Be sure to look at the installation steps for the W-4PSB, W-4PF, W-6PSB, and W-6PF wheels to see how to use the M8-N.
| Box Quantity | 3000 |
|---|---|
| Weight (kg/lbs) | 0.009 lb (0.004 kg) |
| Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
| Common Usage | Used to assemble 4 and 6 inches brackets for casters |
| Compatible brand | Flexpipe, Creform, Fastube |
| Non Compatible Brand | Trilogiq |
| Primary Material | Galvanised Hot rolled steel (SPHC) |
| Temperature Resistance | -58°F to 185°F (-50°C to 85°C) |
| Frequency of Use | Moderate |
| Electric Conductivity (ESD) | Yes |
