    SKU
    W-4PSB-KIT

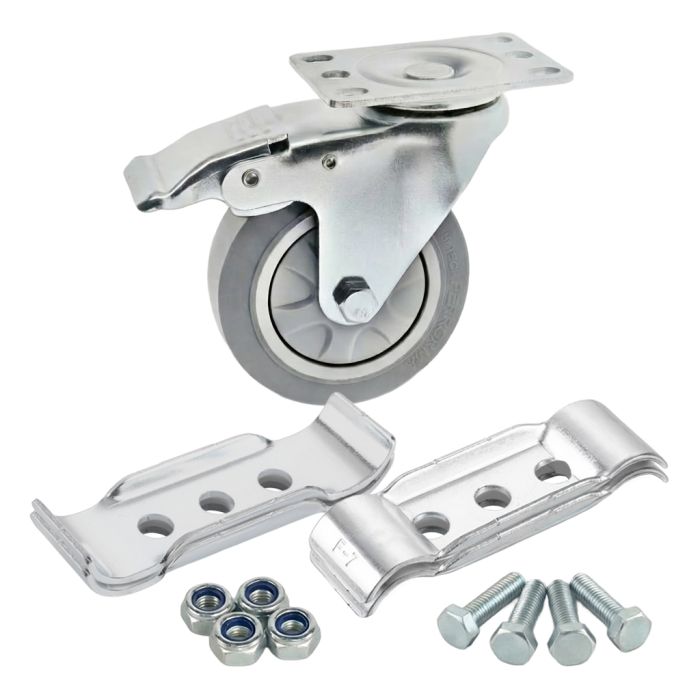

    4" Swivel Plate Caster with Brake - Kit

    • Hardware included
    • 4 inches (100 mm) diameter wheel
    • 250 pounds (113 kg) loading capacity
    • 2.5M/h maximum speed
    Also Available:
    1. 4" Rigid Plate Caster - Kit
    USD$24.22
    –
    +
    Add to Wish List

    The flange mount swivel caster is a foot that adds mobility to an application and commonly mounts to the T-slot profile end or side using a base plate. The swivel enables easy movement and pivot turns. The top mount brake locks both the wheel and swivel motion. This is ideal for use in industrial settings such as mobile carts and material handling solutions.

    • Swivel plate caster with lock brake and equipped with a precision ball bearing
    • Loading capacity of 250 pounds (113 kg)
    • Maximum speed of 2.5M/h (4.02 Km/h)
    • Kit includes:  (2) Caster Up Brackets (WF-UP), (2) Caster Low Brackets (WF-LOW), (4) M8 x 35mm Bolts (M8-35B), and (4) M8 Nuts (M8-N).
    More Information
    Box Quantity 40
    Height 5 1/8 in (130 mm)
    Width 1 1/8 in (29 mm)
    Weight (kg/lbs) 1.884 lb (0.855 kg)
    Box Dimensions Cardboard box of 18 X 11 X 12 in (460 X 280 X 300 mm)
    Primary Material Thermoplastic Rubber (TPR)
    Temperature Resistance -22°F to 158°F (-30°C to 70°C)
    Electric Conductivity (ESD) No
    Loading Capacity 250 lb (113 kg)
    1. Ensure you have the following parts:
      • 1x W-4PSB
      • 2x WF-UP
      • 2x WF-LOW
      • 4x M8-35B
      • 4x M8-N
      • 2x 28mm pipes of your choice
      • 1x Wrench
      • 1x Ratchet
    2. Ensure that the structure is leveled when supported by the pipes that will be wheeled. Otherwise, the height difference might cause the structure to sway.
    3. Flip the structure for better access to the bottom pipes.
    4. Ensure the pipes are parallel and have 3 1/4 in of center spacing.
    5. Place the two WF-LOW perpendicular on the pipes.
    6. Place the caster on both WF-LOW and align the openings.
    7. Take one WF-UP and regroup it with one of the WF-LOW.
    8. Take two M8-35B bolts and two M8-N nuts and insert them into the corresponding openings. Then lightly tighten them together.
    9. Repeat steps 6 and 7 for the other WF-UP and the bolts and the nuts remaining.
    10. Tighten completely the four M8-35B bolts and the four M8-N nuts in a cross pattern.
