Right Side Caster Plate Installation
- ideal for transporting heavy loads
- Hardware pre-assembled
- Intended for plate casters

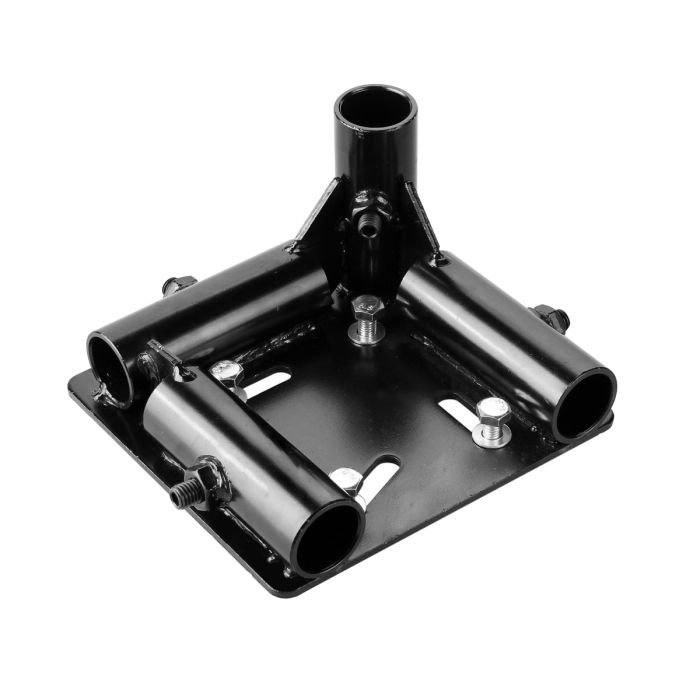

The WF-RPLATE is a black-coated steel Heavy Duty caster plate that can be used for reinforcing structures that require extra strength to the base.
This Heavy Duty caster plate is intended to be used with carts that require to transport heavy parts and/or racks that require massive support capacity.
It is designed to be used with 6-inch casters but hole patterns can also accomodate 4 inch plate casters.
Installation steps:
The WF-RPLATE comes pre-assembled with (x4) washers, (x4) lock nuts and (x4) bolts. This hardware is to fasten the caster to the plate and (x4) (5mm) set screws used to secure the pipes into the openings of the RPLATE. See the installation steps tab to see how to assemble this caster plate.
Want to reuse parts of your old system?
The WF-RPLATE Flexpipe Heavy Duty Caster plate is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
| Box Quantity | 2 |
|---|---|
| Weight (kg/lbs) | 4.246 lb (1.926 kg) |
| Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
| Common Usage | Used for reinforcing structures that require extra strength to the base |
| Compatible brand | Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm) |
| Non Compatible Brand | Trilogiq (28.6 mm) |
| Primary Material | Galvanised hot rolled steel (SPHC) |
| Temperature Resistance | -58°F to 185°F (-50°C to 85°C) |
| Electric Conductivity (ESD) | Yes |
| Manufacturing Technique | Folded and welded |
1. Install the tubes in the WF-RPLATE
- Unscrew the 4 screws to the max.without removing them
- Insert the tubes until they touch the bottom of the cylinder
- Fasten the screws so that the head does not protrude
2.Install the wheels
- With the screws supplied with the WF-RPLATE, take a bolt with a washer
- Install the wheel in the desired direction
- Insert the bolt into one of the holes and replace a washer and nut on the other side
- Repeat for the other 3 holes
- Tighten the 4 bolts
