SKU
SP-96-BL
Blue 8' 2mm thick pipe
2mm 8' blue steel pipe PE coat
USD$13.10
Stocks
Farnham: 3859
Los Angeles: 6647
Lawrenceville: 5094
- Galvanized steel pipe coated with blue polyethylene (PE)
- 1/16 in (2 mm) steel thickness
- 1 1/16 in (28 mm) diameter
- 96 in (2438 mm) length
- Do more with less! Your Flexpipe parts cut and shipped at an advantageous rate with our linear cutting service!

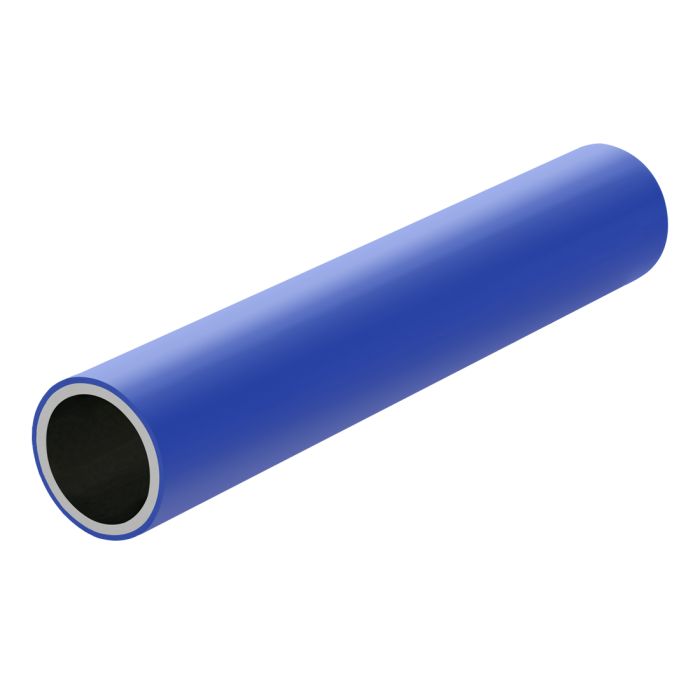

The P-96 is a 1 1/16 in (28 mm) external diameter galvanized steel pipe coated with colored polyethylene. To minimize shipping costs and maximize maneuverability, most of the pipes are 8 feet (2438 mm) long.
It is recommended to consult the page How to calculate the loading capacity before designing your structures.
All the P-96 pipes of the Flexpipe system are compatible with most other 28 mm systems on the market. This allows any surplus left by your previous systems to be used.
CUTTING SERVICE
Pre-cut service is now available for this product. Read more about our pre-cut service to find out how you can add it to your order.
| Units per package (sold separately) | 8 |
|---|---|
| Length inches | 96 in (2438.4 mm) |
| Pipe outside diameter inches | 1 1/16 in (27.6 mm ± 0.2 mm) |
| Pipe inside diameter inches | 7/8 in (21.8 mm ± 0.1 mm) |
| Coating thickness inches | 1/16 in (1.1 mm ± 0.1 mm) |
| Steel thickness inches | 1/16 in (1.8 mm ± 0.02 mm) |
| Unit weight pounds | 6.490 lbs (2.950 kg) |
| Package dimensions inches | 96 1/2 X 4 1/4 X 2 1/4 in (2451 mm X 108 mm X 57 mm) |
| common uses | Carts, Racks, Flow Racks, Workstations, Boards |
| Compatible joint systems | Creform, Fastube |
| Noncompatible joint systems | Trilogiq |
| Noncompatible joint systems | Trilogiq |
| RoHS certification | Yes |
| Recyclable | Yes |
| Reusable | Yes |
| Electric conductivity (ESD) | No |
| Material | Cold rolled steel (SPCC) |
| Steel hardness (HRB) | 0.9 |
| Steel grade | Q195 |
| Welding process | High frequency welding |
| Steel pipe treatment | Galvanized |
| Coating material | Polyethylene (PE) |
| Finish | Matte |
| UV resistance | Very high |
| System operational temperature | -40°F to 122°F (-40°C to 50°C) |
| Pantone | 7687C |
