Black 8ft 2mm thick pipe ESD
- Galvanized steel pipe coated with black polyethylene (PE) with electric conductivity (ESD)
- 1/16 in (2 mm) steel thickness
- 1 1/16 in (28 mm) diameter
- 96 in (2438 mm) length
- Take advantage of our cutting service

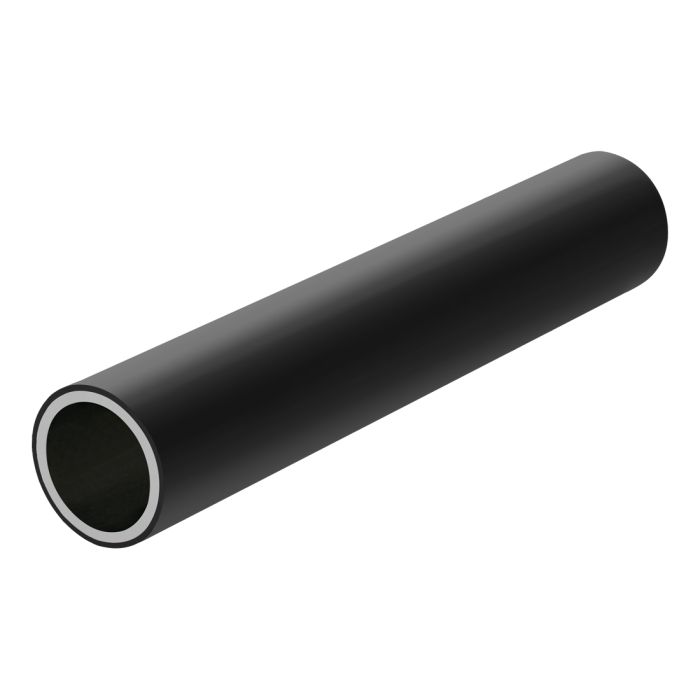

The SEP-96-BK is a 1 1/16 in (28 mm) external diameter galvanized steel pipe with electric conductivity (ESD) coated with black colored polyethylene. Its 1/16 (2 mm) steel thickness allows to build stronger structure than 1/16 (1.1 mm) in thickness pipes.
To minimize shipping costs and maximize maneuverability, most of the pipes are 8 feet (2438 mm) long.
It is recommended to consult the page How to calculate the loading capacity before designing your structures.
All the P-96 pipes of the Flexpipe system are compatible with most other 28 mm systems on the market. This allows any surplus left by your previous systems to be used.
Please note that 2 mm pipes are intended to be used for heavy-duty type environments and are not compatible with stem casters and AF-ILEV. Therefore, we recommend using plate casters in general - W-4PSB, W-4PF and W-6PSB.
Our cutting service is available for this product by simply selecting the according option on this page.
|Units per package (sold separately)||10|
|Pipe outside diameter inches||1 1/16 in (27.6 mm ± 0.2 mm)|
|Pipe inside diameter inches||7/8 in (21.8 mm ± 0.1 mm)|
|Coating thickness inches||1/16 in (1.1 mm ± 0.1 mm)|
|Steel thickness inches||1/16 in (1.8 mm ± 0.02 mm)|
|Unit weight pounds||6.490 lbs (2.950 kg)|
|Package dimensions inches||96 1/2 X 4 1/4 X 2 1/4 in (2451 mm X 108 mm X 57 mm)|
|Electric conductivity (ESD)||Yes|
|Material||Cold rolled steel (SPCC)|
|Steel hardness (HRB)||70|
|Welding process||High frequency welding|
|Steel pipe treatment||Galvanized|
|Coating material||Polyethylene (PE)|
|UV resistance||Very high|
|System operational temperature||-40°F to 122°F (-40°C to 50°C)|
