SKU
HJ-2NP

Corner joint set

Corner joint set steel cr
USD$2.48

In stock

  • Compatible with 28 mm pipes
  • Assembly required
  • Joint set with antistatic properties (ESD)

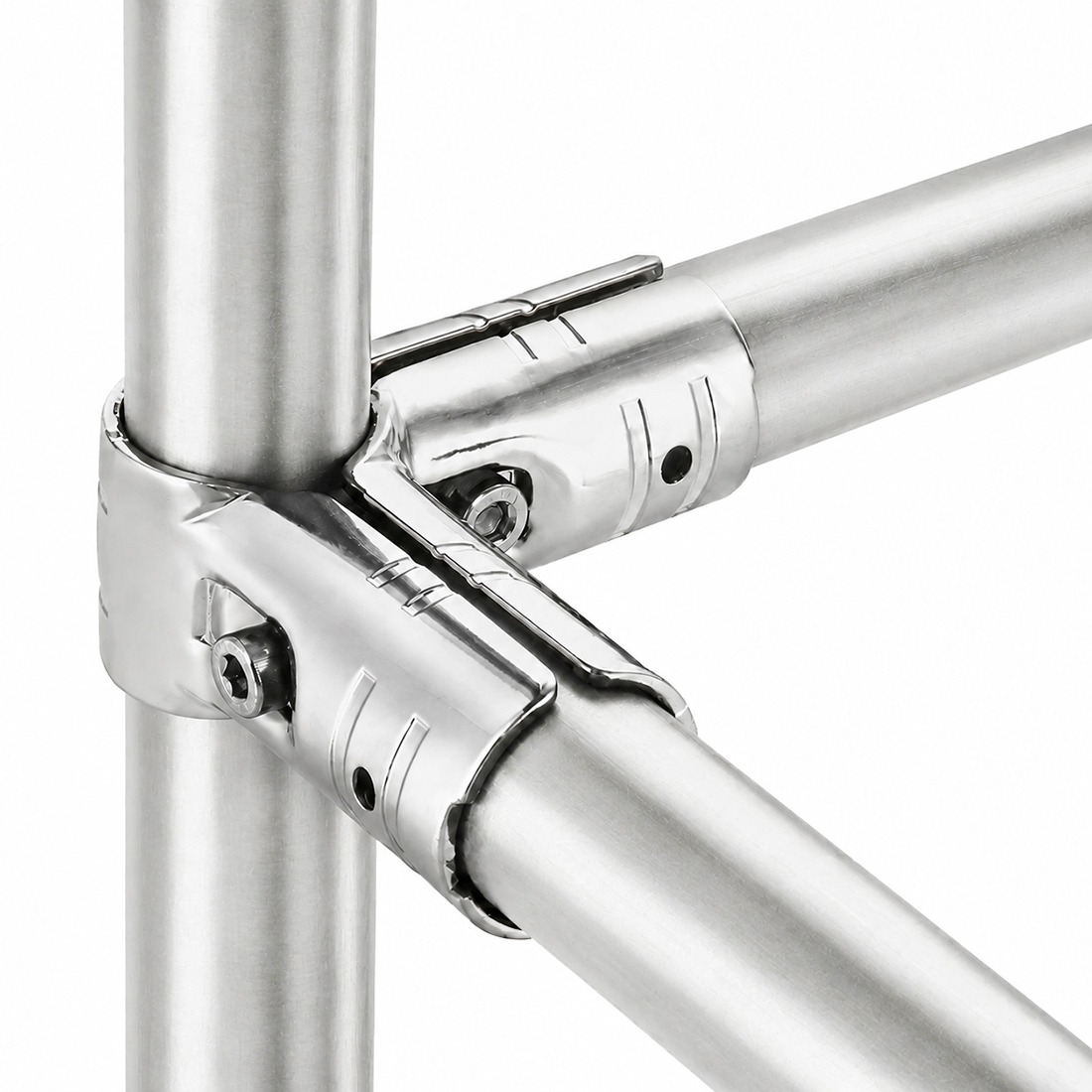

The HJ-2NP is a chrome-plated joint set with antistatic properties (ESD) that allows creating a three-pipe intersection or a corner. This joint set will probably be used for most of your structure's external corners and structural separations on two perpendicular sides. Other applications of the HJ-2NP include the creation of more complex and ergonomic handles, the creation of V-shape racking support or a V-shape roof. It is often associated with the AI-CORNER accessory when positioning a surface on external sides.

To assemble an HJ-2NP you need to combine an H-2NP and an H-3NP together with two M6-25BWZ bolts and two M6-NWZ nuts.

Technical Information:
This joint set is designed with 10 striations for a better grip on the plastic coating of the 28 mm pipes. It also includes 8 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw F-A85/8, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.

Installation Steps:
See the installation steps tab to view how to assemble this connector.

Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: HJ-2

Want to reuse parts of your old system?
The HJ-2NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

More Information
Best SellerNo
Needed parts1x H-2NP + 1x H-3NP + 2x M6-25BWZ + 2x M6-NWZ
Length inches2 9/16 in (65 mm)
Width inches1 5/16 in (33 mm)
External height inches3 1/4 in (83mm)
External width inches3 1/4 in (83mm)
External depth inches1 5/16 in (33mm)
Steel thickness inches1/8 in (2.5 mm)
Unit weight pounds0.510 lbs (0.232 kg)
Compatible joint systemsCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
None compatible joint systemsFastube, Trilogiq (28.6 mm)
RoHS certificationYes
RecyclableYes
Compatible pipe systemsCreform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)
None compatible pipe systemsTrilogiq (28.6 mm)
Frequency of useVery High
ReusableYes
Reusable partsYes
Electric conductivity (ESD)Yes
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)68-75 HRB
FinishShiny
UV resistanceHigh
System operational temperature-148°F to 572°F (-100°C to 300°C)
Steel treatmentChrome plating
Manufacturing techniqueStamping and deburring
Striations for grip10 striation grip lines
Positioning guide8 positioning guide lines
Additional reinforcement hole5 reinforcement holes
  1. Ensure you have the following parts:
    • 1x H-2NP
    • 1x H-3NP
    • 2x M6-25BWZ bolt
    • 2x M6-NWZ nut
    • 3x 28mm ESD pipes of your choice
    • 1x T-HANDLE 5mm hex key
  2. Fix the H-3NP connector to the desired location on the first pipe.

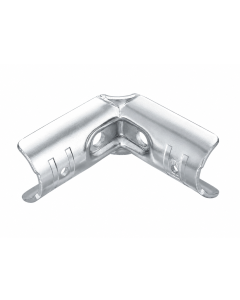

  3. Put the H-2NP connector in the inner corner of the HJ-2NP.
  4. Fix the connectors with the two M6-25BWZ bolts and the two M6-NWZ nuts by putting them in the corresponding opening of the HJ-2NP. Make sure to put the bolts on the most accessible side of your structure.
  5. Tighten the M6-25BWZ bolt and the M6-N nut a few threads, but not too much.
  6. Insert the second and third pipes within the openings of the HJ-2NP, and between the first and second guides as shown on the plan.
  7. Tighten completely the M6-25BWZ and the M6-NWZ together until the HJ-2NP is firmly attached to the pipes. A force of 9.8 Nm is recommended for this step.
