SKU

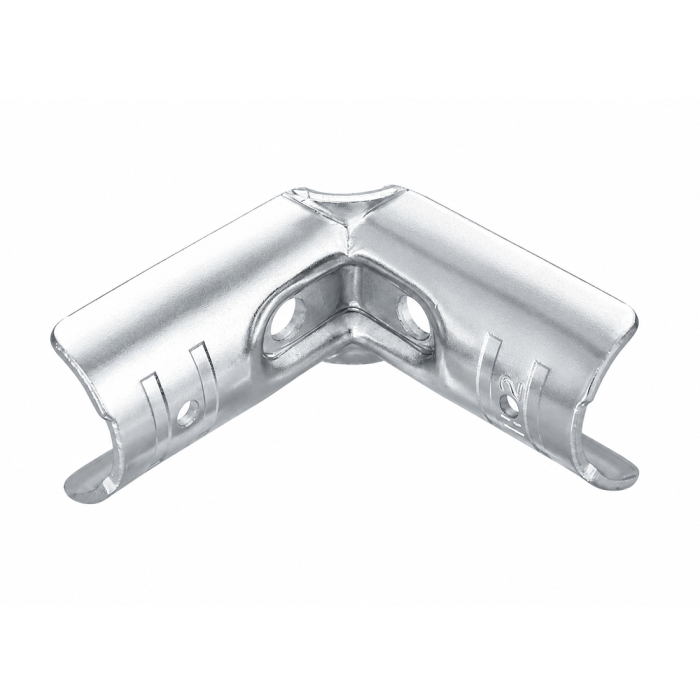

H-2NP
Inner corner joint
Inner corner joint steel cr
USD$1.37
Stocks
Farnham: 16812
Los Angeles: 4301
Lawrenceville: 17189
The H-2NP is a anti-static metal single joint that is also part of the formation of multiple steel connectors, namely HJ-2NP, HJ-3NP, and HJ-5NP. This joint is one of the most versatile of the Flexpipe system. Since it is needed to create three connectors, you should always keep a box of H-2NP in stock.
This single joint has up to four internal striations for a better, stronger grip on the 28mm pipe's coating. It was also manufactured with four pre-drilled holes for reinforcement when building heavy-duty structures.
The Flexpipe H-2NP is compatible with connectors from most pipe and joint systems on the market. This allows our customers to complete projects made from old parts or create new ones with non-Flexpipe as well as Flexpipe parts.
This single joint has up to four internal striations for a better, stronger grip on the 28mm pipe's coating. It was also manufactured with four pre-drilled holes for reinforcement when building heavy-duty structures.
The Flexpipe H-2NP is compatible with connectors from most pipe and joint systems on the market. This allows our customers to complete projects made from old parts or create new ones with non-Flexpipe as well as Flexpipe parts.
| Units per box (sold separately) | 150 |
|---|---|
| Height inches | 3 1/4 in (83mm) |
| Width inches | 3 1/4 in (83mm) |
| Depth inches | 1 5/16 in (33mm) |
| Steel thickness inches | 1/8 in (2.5mm) |
| Unit weight pounds | 0.207 lbs (0.094 kg) |
| Box dimensions inches | 11 X 9 X 5 in (280mm X 225mm X 130mm) |
| Compatible joint systems | Flexpipe, Creform |
| Noncompatible joint systems | Trilogiq, Fastube |
| Noncompatible joint systems | Trilogiq, Fastube |
| RoHS certification | Yes |
| Recyclable | Yes |
| Compatible pipe systems | Flexpipe, Creform, Fastube |
| Noncompatible pipe systems | Trilogiq |
| Frequency of use | Very high |
| Reusable | Yes |
| Electric conductivity (ESD) | Yes |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 68-75 HRB |
| Finish | Shiny |
| UV resistance | High |
| System operational temperature | -148°F to 572°F (-100°C to 300°C) |
| Steel treatment | Chrome plating |
| Manufacturing technique | Stamping and deburring |
| Striations for grip | 4 striation grip lines |
| Positioning guide | 4 positioning guide lines |
| Additional reinforcement hole | 2 reinforcement holes |
