SKU
HJ-17NP

45⁰ fix angle joint set

45 fix angle joint set steel cr
USD$1.75

In stock

  • Compatible with 28 mm pipes
  • Assembly required; pieces sold separately
  • Joint set with antistatic properties (ESD)

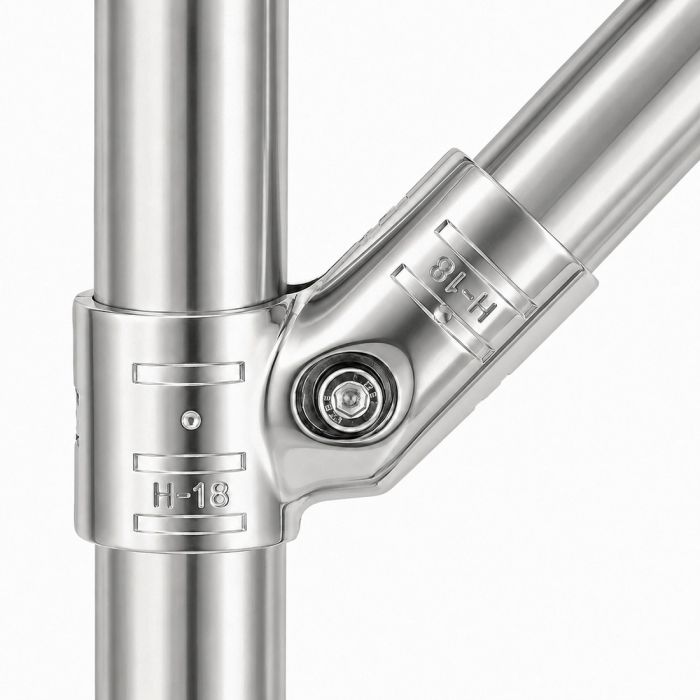

The HJ-17NP is a chrome-plated joint set with antistatic properties (ESD) that allows to create a two-pipe intersection with a 45-degree non-adjustable angle. This joint set is used for reinforcing structures. Unlike the HJ-6NP / HJ-6ANP / HJ-14NP, the HJ-17NP has nos adjustable angle. This feature makes it particularly useful for individual reinforcement situations.

To assemble an HJ-17NP you need to combine an H-17NP and an H-18NP together with one M6-25BWZ bolt and one M6-NWZ nut.

Assembly tip:
This joint set is composed of only a few parts, which makes its installation very fast. In addition, this feature helps strengthen the structure, and even helps it to increase the load capacity. For more information on the different ways to increase your structure's loading capacity, read our article How to calculate the loading capacity for modular structures.

Technical Informations:
This joint set is designed with 8 striations for a better grip on the plastic coating of the 28 mm pipes. It also includes 4 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw F-A85/8, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.

Installation Steps
See the installation steps tab to view how to assemble this connector.

Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: HJ-17

Want to reuse parts of your old system?
The HJ-17NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

More Information
Best SellerNo
Units per boxNA
Needed parts1x H-17NP + 1x H-18NP + 1x M6-25BWZ + 1x M6-NWZ
Length inches3 3/16 in (81 mm)
Width inches1 5/16 in (33 mm)
External height inches2 1/8 in (54mm)
External width inches3 1/4 in (82mm)
External depth inches1 5/16 in (33mm)
Steel thickness inches1/8 in (2.5 mm)
Unit weight pounds0.323 lbs (0.147 kg)
Compatible joint systemsCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
None compatible joint systemsFastube, Trilogiq (28.6 mm)
RoHS certificationYes
RecyclableYes
Compatible pipe systemsCreform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)
None compatible pipe systemsTrilogiq (28.6 mm)
Frequency of useModerate
ReusableYes
Reusable partsYes
Electric conductivity (ESD)Yes
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)68-75 HRB
FinishShiny
UV resistanceHigh
System operational temperature-148°F to 572°F (-100°C to 300°C)
Steel treatmentChrome plating
Manufacturing techniqueStamping and deburring
Striations for grip8 striation grip lines
Positioning guide4 positioning guide lines
Additional reinforcement hole4 reinforcement holes
  1. Ensure you have the following parts:
    • 1x H-17NP
    • 1x H-18NP
    • 1x M6-25BWZ bolt
    • 1x M6-NWZ nut
    • 2x 28mm ESD pipes of your choice
    • 1x T-HANDLE 5mm hex key
  2. Group the H-17NP with the H-18NP connector around the first pipe.
  3. Fix the connectors together by placing the M6-25BWZ bolt with the M6-NWZ nut in the corresponding openings, and loosely tighten. Make sure to place the bolts on the most accessible side.
  4. Insert the second pipe in the remaining opening of the connectors, between the first and the second positioning guidelines.
  5. Tighten completely until the HJ-17NP joint set is firmly attached to the two pipes. A force between 12-14 Nm is recommended for this step.
