SKU
H-18NP
45 angle B joint
45 angle B joint steel cr
USD$1.04
Stocks
Farnham: 1540
Los Angeles: 275
Lawrenceville: 4654

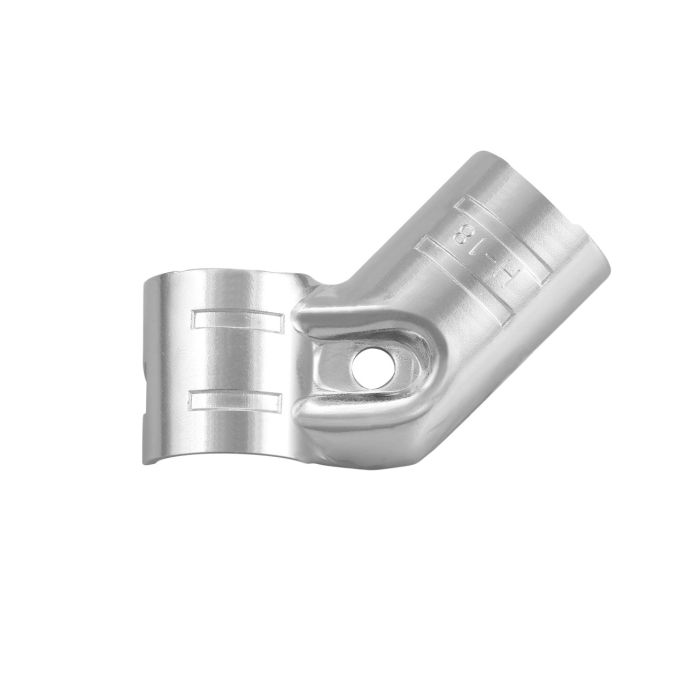

The H-18NP is a anti-static metal single joint and the second half of a joint set named HJ-17NP. When connected with an H-17NP, this connector becomes a 45° angle joint set. This part's only purpose is to connect with its counterpart, and the same applies to the H-17NP. Together, these single joints enable Flexpipe builders to assemble and improve pipe structures.
This joint doesn't come with adjustable features, so if you are looking for a more flexible solution you should take a look at the HJ-6NP joint set product page. However, the fewer parts making up a set, the stronger it is.
We recommend that you check the HJ-17NP page to see all the different applications of this joint set.
This joint doesn't come with adjustable features, so if you are looking for a more flexible solution you should take a look at the HJ-6NP joint set product page. However, the fewer parts making up a set, the stronger it is.
We recommend that you check the HJ-17NP page to see all the different applications of this joint set.
Units per box (sold separately) | 145 |
---|---|
Height inches | 3 1/4 in (83mm) |
Width inches | 3 1/4 in (83mm) |
Depth inches | 1 5/16 in (33mm) |
Unit weight pounds | 0.152 lbs (0.069 kg) |
Box dimensions inches | 11 X 9 X 5 in (279mm X 229mm X 127mm) |
Compatible joint systems | Flexpipe, Creform |
Noncompatible joint systems | Trilogiq, Fastube |
Noncompatible joint systems | Trilogiq, Fastube |
RoHS certification | Yes |
Recyclable | Yes |
Compatible pipe systems | Flexpipe, Creform, Fastube |
Noncompatible pipe systems | Trilogiq |
Frequency of use | Moderate |
Reusable | Yes |
Electric conductivity (ESD) | Yes |
Material | Hot rolled steel (SPHC) |
Steel hardness (HRB) | 0.65 |
Finish | Shiny |
UV resistance | High |
System operational temperature | -40°F à 122°F (-40°C à 50°C) |
Steel treatment | Nickel electroplating |
Manufacturing technique | Pressed and deburring |
Striations for grip | 4 |
