Double pivot joint set

Double pivot joint set steel bk

In stock

  • Compatible with 28 mm pipes
  • Assembly required

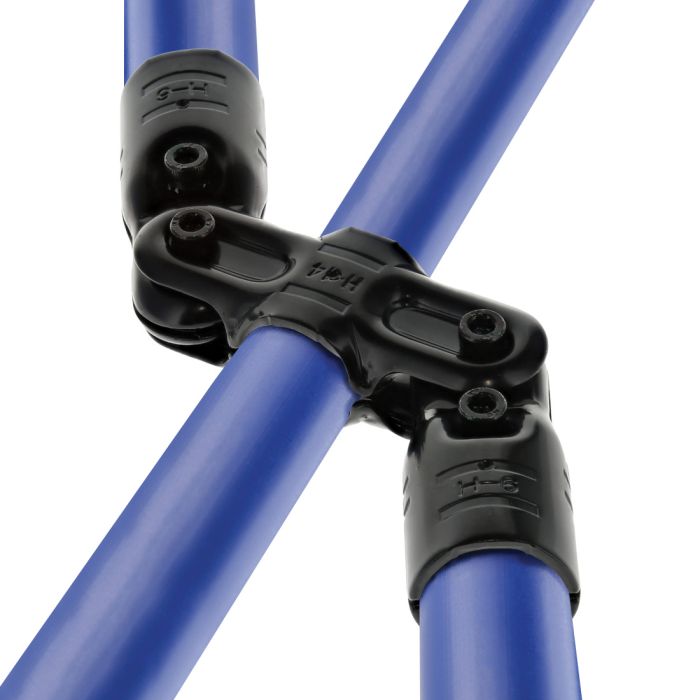

The HJ-14 is a black metal joint set allows to create an intersection of three pipes with adjustable angle on each side of the cross tube.

To assemble an HJ-14 you need to put two H-14 with four H-6, four M6-25B bolts and four M6-N nuts. It is also possible to assemble the HJ-14 with four H-6A's.

Assembly tip:
This joint set is very similar to a doubled HJ-6. It is frequently used for reinforcing structures, or to create articulations and anchors. This joint set allows each side tube to rotate up to 175 degrees.

Technical Information:
This joint set is designed with 8 striations for a better grip on the plastic coating of the 28 mm pipes. These grips are found on the H-6 or H-6A.

Installation Steps:
See the installation steps tab to view how to assemble this connector.

Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: HJ-14NP

Want to reuse parts of your old system?
The HJ-14 Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

More Information
Best SellerNo
Units per boxNA
Needed parts4 (H6) + 2 (H14) + 4 (M6-25B) + 4 (M6-N)
Length inches3 13/16 in (97 mm)
Width inches1 5/16 in (33 mm)
External height inches1 5/16 in (33mm)
External width inches1 13/16 in (46mm)
External depth inches1 5/16 in (33mm)
Steel thickness inches1/8 in (2.5 mm)
Unit weight pounds0.845 lbs (0.384 kg)
Compatible joint systemsCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
None compatible joint systemsFastube, Trilogiq (28.6 mm)
RoHS certificationYes
Compatible pipe systemsCreform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)
None compatible pipe systemsTrilogiq (28.6 mm)
Frequency of useVery low
Reusable partsYes
range of motion2 X 180°
Electric conductivity (ESD)No
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)68-75 HRB
UV resistanceHigh
System operational temperature-148°F to 572°F (-100°C to 300°C)
Steel treatmentBlack cathodic electrodeposition (Ecoating)
Manufacturing techniqueStamping and deburring
Striations for grip8 striation grip lines
Positioning guide8 positioning guide lines
Additional reinforcement holeNone

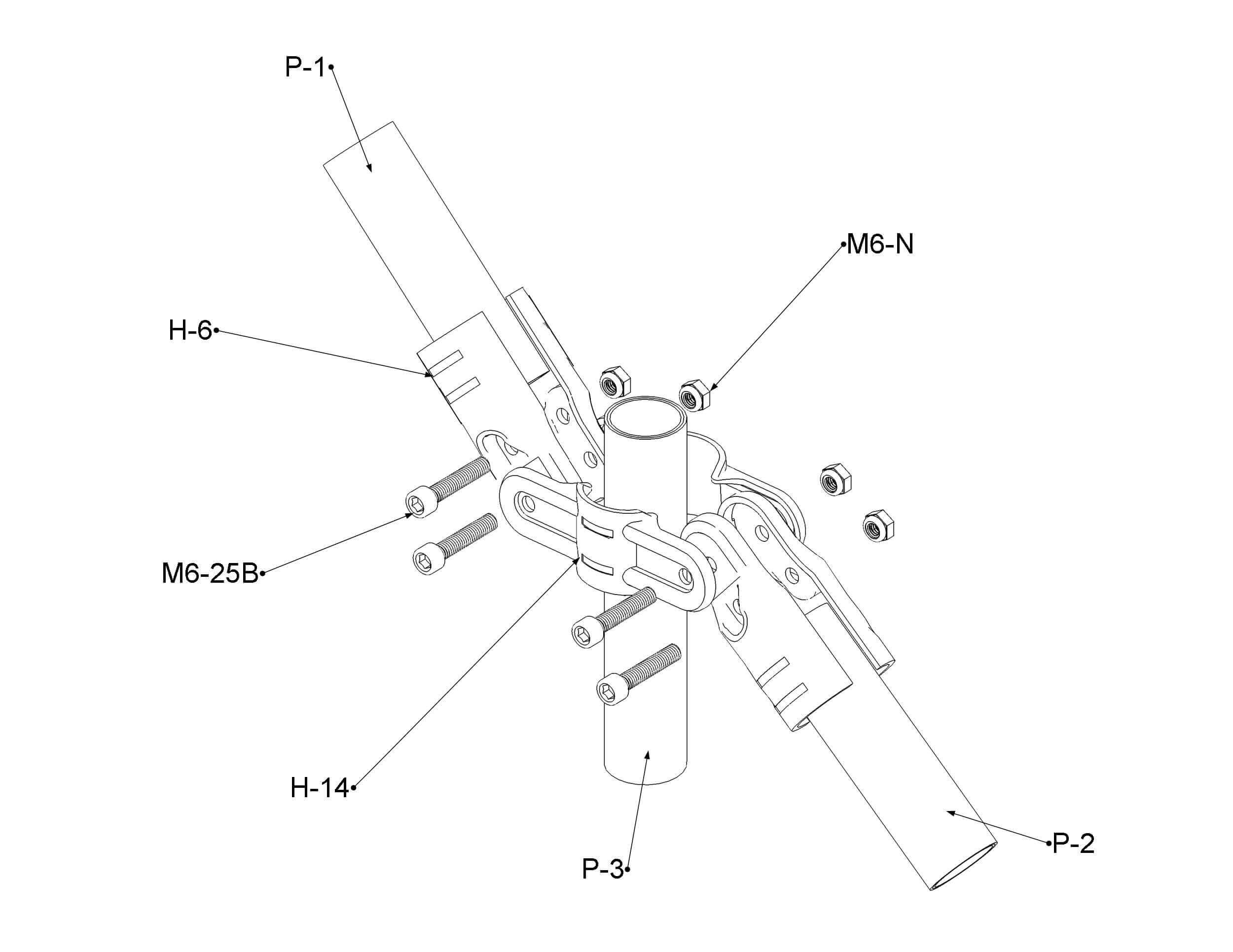

1- Make sure you have the following parts:
4 H-6
2 H-14
4 M6-25B
4 M6-N
3 3 28mm pipes of your choice
1 Allen key or one drill equipped with an Allen Key 5mm tip
2- Take two connectors H-6 and regroup them around the pipe P2.
3-Take a M6-25B bolt and a M6-N nut and insert them into the openings near the pipe P2. Make sure to put the bolt on the more accessible side.
4 - Tighten completely the M6-25B bolt and M6-N nut together until the H-6 connectors attached firmly to the P2 pipe . A force of 9.8 Nm is recommended for this step.
5- Repeat step two, three and four with two other connectors H-6 and the P3 pipe. 2- Take a connector H-14 and fix it in the desired location on the P1 pipe.
5- Align the remaining openings of H-6 connectors with the H-14 ones.
6-Take two M6-25B bolts and two M6-N nuts and insert them into the openings mention in step 7. Make sure to put the bolt on the more accessible side.
8- Tighten completely the M6-25B bolts and M6-N nuts together until the HJ-6=14 attached firmly to all pipes . A force of 9.8 Nm is recommended for this step.
