Double pivot joint set
In stock
- Compatible with 28 mm pipes
- Assembly required
- Joint set with antistatic properties (ESD)

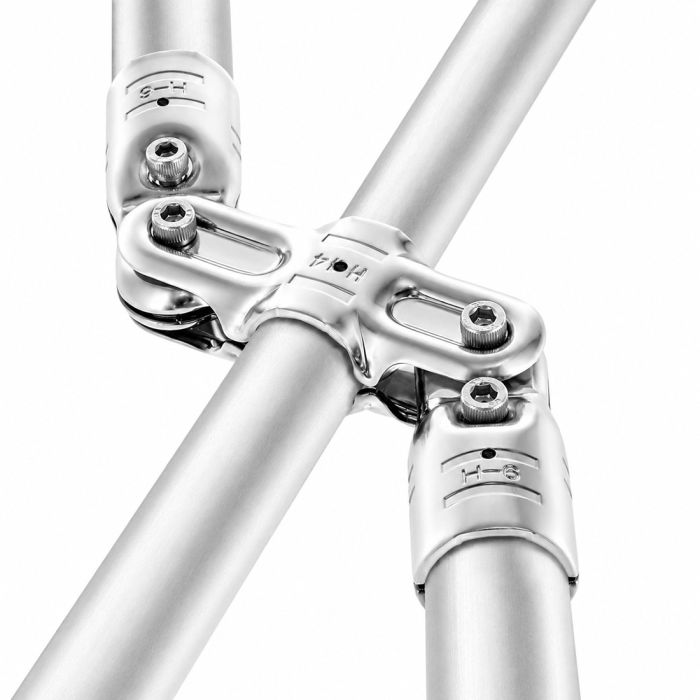

The HJ-14NP is a chrome-plated joint set with antistatic properties (ESD) that allows creating an intersection of three pipes with adjustable angle on each side of the cross tube.
To assemble an HJ-14NP you need to put two H-14NP with four H-6NP, four M6-25BWZ bolts and four M6-NWZ nuts. It is also possible to assemble the HJ-14NP with four H-6ANP's.
Assembly tip:
This joint set is very similar to a doubled HJ-6NP. It is frequently used for reinforcing structures, or to create articulations and anchors. This joint set allows each side tube to rotate up to 175 degrees.
Technical Information:
This joint set is designed with 8 striations for a better grip on the plastic coating of the 28 mm pipes. These grips are found on the H-6NP or H-6ANP.
Installation Steps:
See the installation steps tab to view how to assemble this connector.
Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: HJ-14
Want to reuse parts of your old system?
The HJ-14NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
| Units per box (sold separately) | NA |
|---|---|
| Needed parts | 4x H-6NP + 2x H-14NP + 4x M6-25BWZ + 4x M6-NWZ |
| Length inches | 3 13/16 in (97 mm) |
| Width inches | 1 5/16 in (33 mm) |
| Steel thickness inches | 1/8 in (2.5 mm) |
| Unit weight pounds | 0.845 lbs (0.384 kg) |
| Compatible joint systems | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Noncompatible joint systems | Fastube, Trilogiq (28.6 mm) |
| RoHS certification | Yes |
| Recyclable | Yes |
| Compatible pipe systems | Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm) |
| Noncompatible pipe systems | Trilogiq (28.6 mm) |
| Reusable | Yes |
| Electric conductivity (ESD) | Yes |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 68-75 HRB |
| Finish | Shiny |
| System operational temperature | -148°F to 572°F (-100°C to 300°C) |
| Steel treatment | Chrome plating |
| Manufacturing technique | Stamping and deburring |
| Striations for grip | 8 striation grip lines |
| Positioning guide | 8 positioning guide lines |
| Additional reinforcement hole | None |
- Ensure you have the following parts:
- Take two H-6NP connectors and group them around the first pipe. Fix the connectors by placing an M6-25BWZ and an M6-NWZ in the corresponding openings until it's firmly attached to the pipe. Make sure to place the bolts on the most accessible side.
- Repeat step 1 with the second pipe.
- Group the two H-14NP connectors around the third pipe, and insert the first pipe with attached H-6NP connectors in between the H-14NP connectors through corresponding openings. Fix the connectors by placing an M6-25BWZ with an M6-NWZ in the corresponding openings and loosely tighten. Make sure to place the bolts on the most accessible side.
- Repeat step 3 with the second pipe on the opposite side of the H-14NP.
- Position the first and second pipes into desired angles and tighten completely until until the H-14s are firmly attached to the H-6 connectors.
