Stacking cap
- Great for stacking structures
- Reduces footprint
- Quick and easy installation

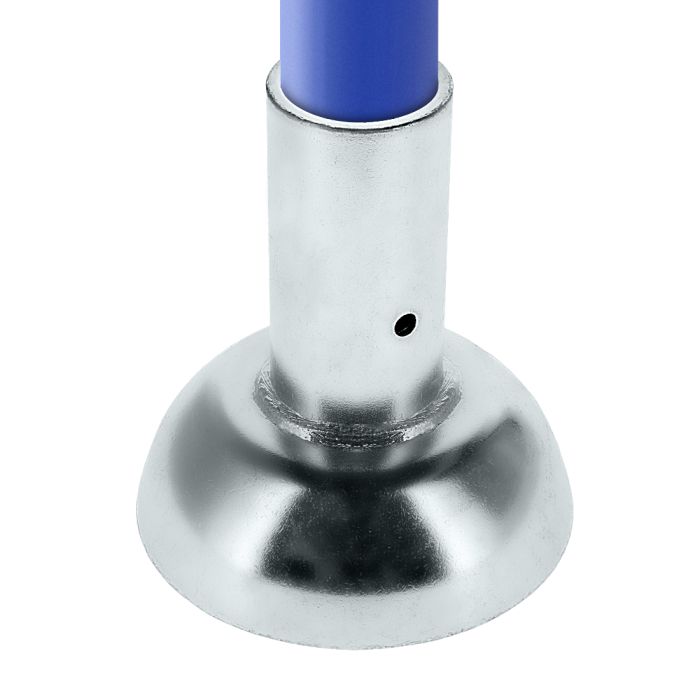

The AF-STACK is a galvanized welded metal cap designed to create stackable carts and racks.
Carts can be lifted by hand or forklift depending on the size and weight of contents and placed wherever it may be most convenient.
We recommend using AF-RUB on structures that will be dropped on the AF-STACK, ensuring maximum stability.
We do not recommend using the AF-STACK as a foot, for that we suggest using the AF-ILEV, AF-OLEV, AF-RUB.
Lastly if stacking carts, the 3 and 4-inch casters are best. we do not recommend 6-inch casters when using this accessory.
The AF-STACK is installed on the outside of the pipe. We recommend securing the AF-STACK to the pipe using
an F-A85/8 metal screw.
Installation Steps
See the installation steps tab to view how to install the AF-STACK.
Want to reuse parts of your old system?
The AF-STACK is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
| Units per box (sold separately) | 10 |
|---|---|
| Height inches | 2 11/16 in (68mm) |
| Width inches | 3 3/4 in (95mm) |
| Depth inches | 3 3/4 in (95mm) |
| Unit weight pounds | 0.869 lbs (0.395 kg) |
| Box dimensions inches | 11 X 9 X 5 in (279mm X 229mm X 127mm) |
| Recyclable | Yes |
| Compatible pipe systems | Flexpipe, Creform, Fastube |
| Noncompatible pipe systems | Trilogiq |
| Reusable | Yes |
| Electric conductivity (ESD) | Yes |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 0.65 |
| Finish | Glossy |
| System operational temperature | -58°F à 185°F (-50°C à 85°C) |
| Steel treatment | Galvanised |
| Manufacturing technique | Folded and welded |
- Ensure you have the following parts:
- 1x AF-STACK
- 1x 28mm pipe of your choice
- 1x F-A85/8 metal screw
- 1x Drill
- 1x #2 square drill bit

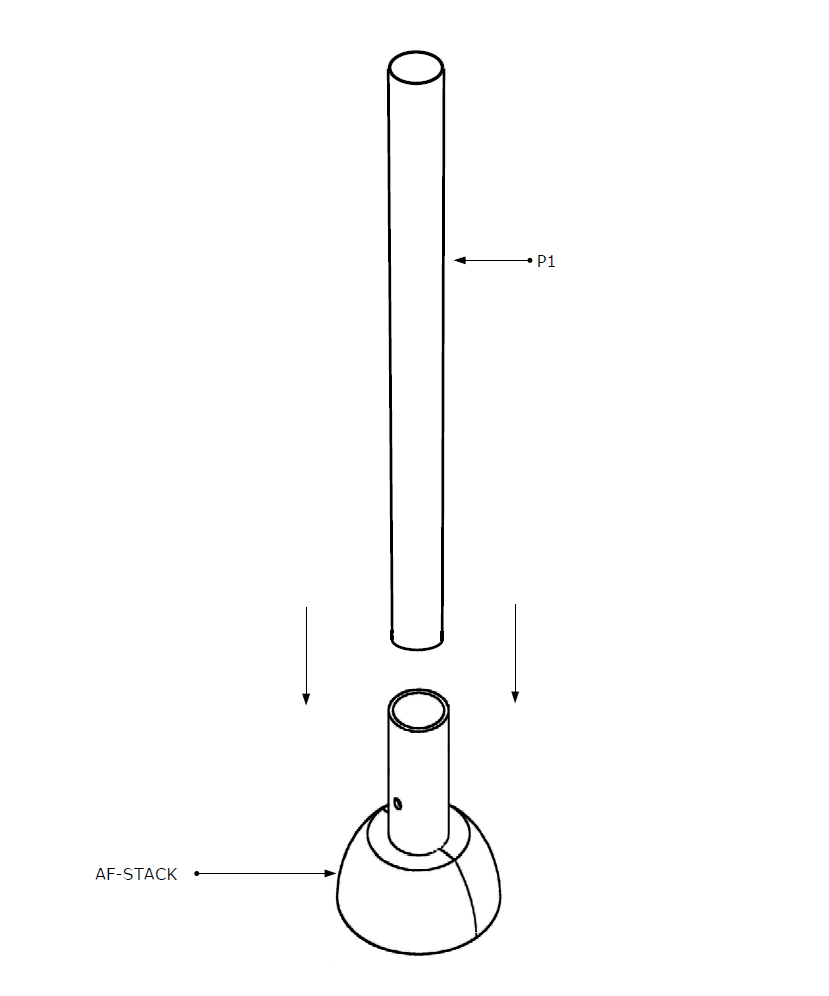

- Insert the AF-STACK completely into P1 pipe
- Fix the F-A85/8 screw in the corresponding opening of the AF-STACK
