Corner stacking support
- Supports corners
- Great for stacking structures
- 20 units per box (please order individually)

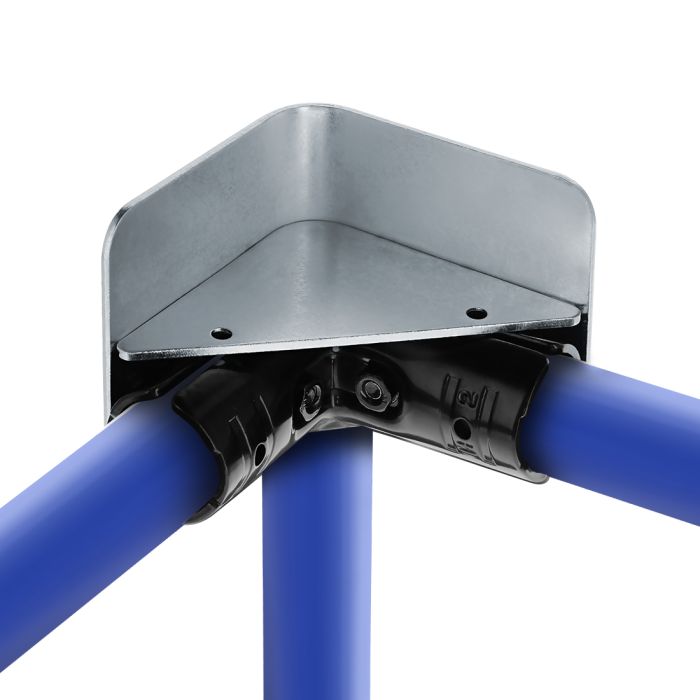

The AC-SKID is a metal accessory you can attach to an HJ-2 to create a supporting corner. As the name suggests, this product was intended to support and retain skids.
You can also use it to maintain pipe structures like racks and carts. Some structures have wheels that are too big for the AF-STACK, but not for this accessory.
The AC-SKID is attached directly to the joint set with two F-A85/8 screws. Unlike the AF-STACK, you can't use this product as a foot.
Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK
Installation Steps:
See the installation steps tab to view how to install the AC-SKID.
Want to reuse parts of your old system?
The AC-SKID is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and non-compatible with our parts.
| Units per box (sold separately) | 20 |
|---|---|
| Height inches | 2 5/8 in (67mm) |
| Width inches | 3 1/8 in (79mm) |
| Depth inches | 3 1/8 in (79mm) |
| Unit weight pounds | 0.605 lbs (0.275 kg) |
| Box dimensions inches | 11 X 9 X 5 in (279mm X 229mm X 127mm) |
| Recyclable | Yes |
| Compatible pipe systems | Flexpipe, Creform, Fastube |
| Noncompatible pipe systems | Trilogiq |
| Reusable | Yes |
| Electric conductivity (ESD) | Yes |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 0.65 |
| Finish | Glossy |
| System operational temperature | -58°F à 185°F (-50°C à 85°C) |
| Steel treatment | Galvanised |
| Manufacturing technique | Folded and welded |
- Ensure you have the following parts:
- 1x AC-SKID
- 2x F-A85/8
- 1x HJ-2 joint in corner
- 2x 28mm pipes of your choice
- 1x Drill w/ #2 square head
- Place a AC-SKID on top of the HJ-2 joint.
- Secure the AC-SKID to the HJ-2 joint using two F-A85/8 screws in the corresponding openings
