Cross hinge joint set
In stock
- Compatible with 28 mm pipes
- Assembly required
- Joint set with antistatic properties (ESD)

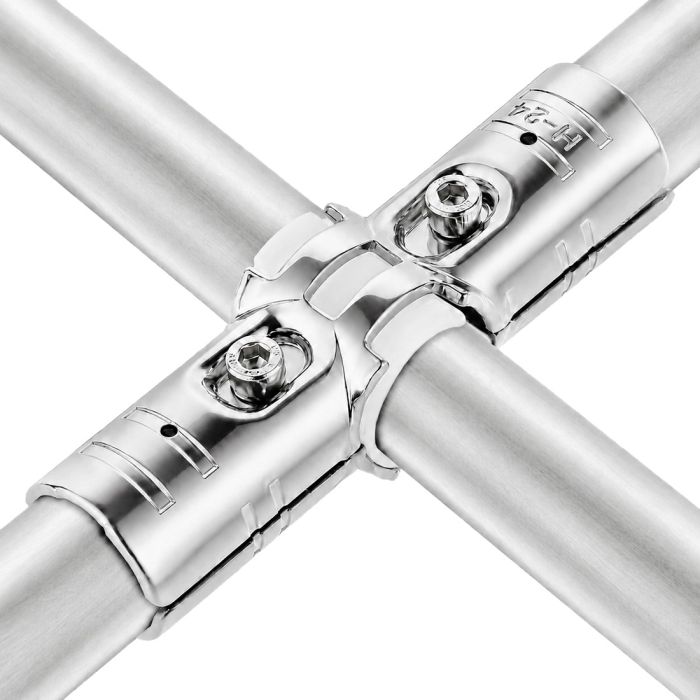

The HJ-24NP is a chrome-plated joint set with antistatic properties (ESD) that allows you to create a swivel three-pipe intersection on two axes.
To assemble an HJ-24NP you need to combine two H-24NP, an AP-HINGE hinge bracket, two M6-25BWZ bolts and two M6-NWZ nuts.
Technical Information:
This joint set is designed with 8 striations for a better grip on the plastic coating of the 28 mm pipes.
Assembly tip:
If your structure doesn't require a swivel joint, we recommend that you use the HJ-4NP, because it will not weaken your structure's capacity. This joint set is very similar to the HJ-24NP with the only difference that is doesn't have a hinge bracket.
Installation Steps:
See the installation steps tab to view how to assemble this connector.
Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: HJ-24
Want to reuse parts of your old system?
The HJ-24NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
| Needed parts | 2x H-24NP + 1x AP-HINGE + 2x M6-25BWZ + 2x M6-NWZ |
|---|---|
| Length inches | 5 1/8 in (130 mm) |
| Width inches | 1 5/16 in (33 mm) |
| Steel thickness inches | 1/8 in (2.5 mm) |
| Unit weight pounds | 0.502 lbs (0.228 kg) |
| Compatible joint systems | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Noncompatible joint systems | Fastube, Trilogiq (28.6 mm) |
| RoHS certification | Yes |
| Recyclable | Yes |
| Compatible pipe systems | Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm) |
| Noncompatible pipe systems | Trilogiq (28.6 mm) |
| Frequency of use | Very low |
| Reusable | Yes |
| Reusable parts | Yes |
| range of motion | 360° |
| Electric conductivity (ESD) | Yes |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 68-75 HRB |
| Finish | Shiny |
| UV resistance | High |
| System operational temperature | -148°F to 572°F (-100°C to 300°C) |
| Steel treatment | Chrome plating |
| Manufacturing technique | Stamping and deburring |
| Striations for grip | 8 striation grip lines |
| Positioning guide | 4 positioning guide lines |
| Additional reinforcement hole | None |
- Ensure you have the following parts:
- Press the AP-HINGE bracket on the first pipe until it clips on, place the opening of the bracket inside of the pipe.
- Group the two H-24NP connectors around the first and the second pipe. Make sure that the AP-HINGE bracket teeth fit into the corresponding openings.
- Fix the connectors together by placing the M6-25BWZ with the M6-NWZ in the corresponding openings, and loosely tighten.
- Insert the second and the third pipes in both of the remaining openings of the HJ-24NP, between the first and the second positioning guidelines.
- Tighten completely until the HJ-24NP joint set is firmly attached to the three pipes.
- If the HJ-24NP feels too tight to rotate, apply a lubricant spray to ease the mobility of the AP-HINGE bracket and to avoid damaging the plastic teeth.
