Plastic Hinge Sleeve for Pipe Joints
- For doors, drop-leaf tables and adjustable shelving
- Used to create rotation and sliding along the pipe
- 150 units per box (please order individually)

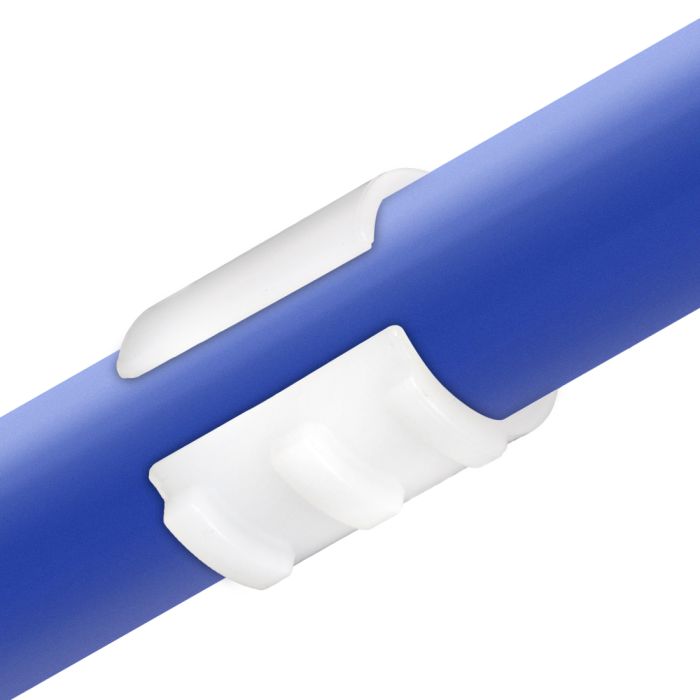

The AP-HINGE is a round plastic bracket made to be pressed-fit around the 28mm pipes. An accessory to be used with HJ-12, HJ-23, HJ-24 joints sets.
This part is what gives the HJ-joints the ability to rotate up to 360 degrees. The AP-HINGE is commonly used to hinge doors, as well as to build drop-leaf table extensions and sliding mechanisms.
Combine with AO-SHIM to limit the sliding range.
Antistatic (ESD):
Compatible with ESD pipes.
Installation Steps:
See the installation steps tab to view how to assemble the AP-HINGE.
Want to reuse parts of your old system?
The AP-HINGE is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
All AP-HINGES are sold individually.
To make it easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system considers a single amount only. Please enter the total amount of AP-HINGE you wish to receive (example; 150 units = 1 box)
| Box Quantity | 150 |
|---|---|
| Length | 1 5/16 in (33 mm) |
| Height | 1 3/8 in (35 mm) |
| Width | 1 5/16 in (33 mm) |
| Weight (kg/lbs) | 0.013 lb (0.243 kg) |
| Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
| Compatible brand | Flexpipe, Creform, Fastube |
| Non Compatible Brand | Trilogiq |
| Primary Material | Polyethylene (PE) |
| Temperature Resistance | -58°F to 185°F (-50°C to 85°C) |
| Electric Conductivity (ESD) | No |
