Double pipe single hinge joint
- Connector used to assemble the HJ-23 joint set
- Compatible with 28 mm pipes when used with an AP-HINGE bracket
- 120 units per box (please order individually)

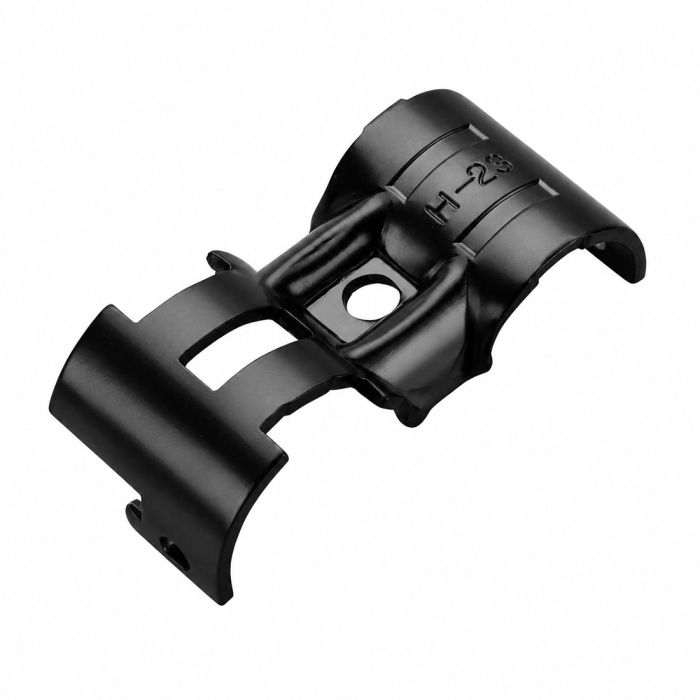

The H-23 is a black metal single joint used to assemble the HJ-23 joint set. This piece is a different version of the H-13 that can be assembled on an AP-HINGE bracket to create a swivel 90-degree angle. Without the hinge, the H-23 can't be assembled on 28 mm pipes. Make sure you have enough AP-HINGE in inventory when you choose this piece.
Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: H-23NP
Want to reuse parts of your old system?
The H-23 Flexpipe joint is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
All our joints are sold individually.
To make is easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system consider single amount only. Please enter the total amount of joint you wish to receive (example; 120 units = 1 box).
|Units per box (sold separately)||120 units per box|
|Length inches||3 3/16 in (81 mm)|
|Height inches||3/4 in (19 mm)|
|Width inches||1 5/16 in (33 mm)|
|Depth inches||1 5/16 in (33mm)|
|Steel thickness inches||1/8 in (2.5mm)|
|Unit weight pounds||0.141 lbs (0.064 kg)|
|Box dimensions inches||11 X 9 X 5 in (280mm X 225mm X 130mm)|
|Compatible joint systems||Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)|
|Noncompatible joint systems||Fastube, Trilogiq (28.6 mm)|
|Noncompatible joint systems||Trilogiq, Fastube|
|Compatible pipe systems||Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)|
|Noncompatible pipe systems||Trilogiq (28.6 mm)|
|Frequency of use||Very Low|
|Electric conductivity (ESD)||No|
|Material||Hot rolled steel (SPHC)|
|Steel hardness (HRB)||68-75 HRB|
|System operational temperature||-148°F to 572°F (-100°C to 300°C)|
|Steel treatment||Black cathodic electrodeposition (Ecoating)|
|Manufacturing technique||Stamping and deburring|
|Striations for grip||2 striation grip lines|
|Additional reinforcement hole||None|
