Double pipe single hinge set
In stock
-
Great for sliding or swiveling mechanisms
-
Great for doors and drop-down extensions
-
Great for adjustable mechanisms

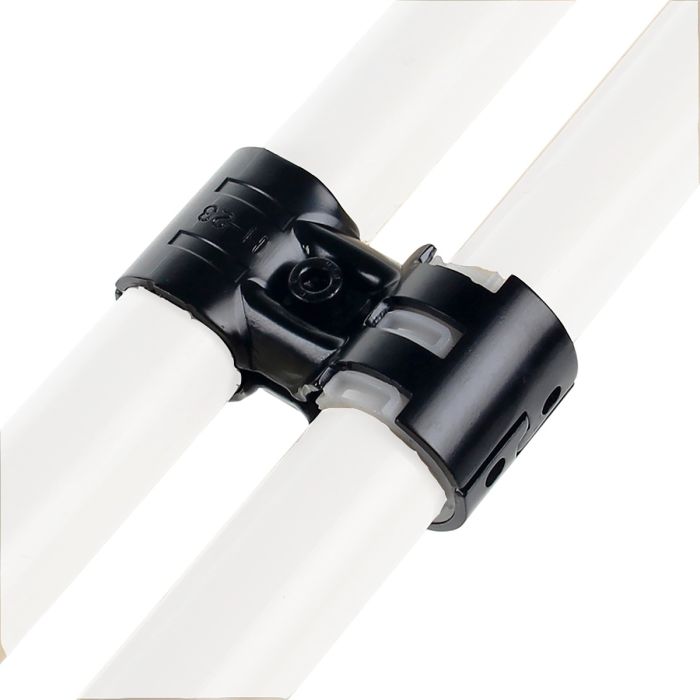

The HJ-23 is a black metal joint set generally used to reinforce the structure's capacity. This joint set is very similar to the HJ-13, with the only difference that it includes a hinge bracket that allows it to rotate over an opening radius of almost 360 degrees, depending on your structure configuration.
To assemble an HJ-23 you need to put two H-23 together with an AP-HINGE hinge bracket, an M6-25B bolt and an M6-N nut.
Assembly tip:
This joint set is frequently used for the assembly of folding tables, doors or on any other structures requiring a moving part. Due to the hinge bracket, we recommend using an AO-SHIM plastic shim to prevent the connector from sliding on the pipe. Consider the HJ-12 if you need similar applications of the HJ-23, but with two perpendicular tubes.
Installation Steps
See the installation steps tab to view how to assemble this connector.
Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: HJ-23NP
Want to reuse parts of your old system?
The HJ-23 Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
| Units per box (sold separately) | NA |
|---|---|
| Needed parts | 2x H-23 + 1x AP-HINGE + 1x M6-25B + 1x M6-N |
| Length inches | 3 13/16 in (97 mm) |
| Width inches | 1 5/16 in (33 mm) |
| External height inches | 1 7/8 in (48mm) |
| External width inches | 3 5/16 in (84mm) |
| External depth inches | 1 1/2 in (38mm) |
| Steel thickness inches | 1/8 in (2.5 mm) |
| Unit weight pounds | 0.315 lbs (0.143 kg) |
| Compatible joint systems | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Noncompatible joint systems | Fastube, Trilogiq (28.6 mm) |
| RoHS certification | Yes |
| Recyclable | Yes |
| Compatible pipe systems | Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm) |
| Noncompatible pipe systems | Trilogiq (28.6 mm) |
| Frequency of use | Very low |
| Reusable | Yes |
| Reusable parts | Yes |
| range of motion | 360° |
| Electric conductivity (ESD) | No |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 68-75 HRB |
| Finish | Glossy |
| UV resistance | High |
| System operational temperature | -148°F to 572°F (-100°C to 300°C) |
| Steel treatment | Black cathodic electrodeposition (Ecoating) |
| Manufacturing technique | Stamping and deburring |
| Striations for grip | 4 striation grip lines |
| Positioning guide | None |
| Additional reinforcement hole | None |
- Ensure you have the following parts:
- Press the AP-HINGE bracket on the first pipe until it clips on, place opening of the bracket inside of the pipe.
- Group the two H-23 connectors around the first and the second pipe. Make sure that the AP-HINGE bracket teeth fit into the corresponding openings. Slide the H-23 connectors into place to lock them together.
- Fix the connectors together by placing the M6-25B with the M6-N in the corresponding openings, and tighten completely until the HJ-23 joint set is firmly attached to the two pipes.
- If the HJ-23 feels too tight to rotate, apply a lubricant spary to ease the mobility of the AP-HINGE bracket and to avoid damaging the plastic teeth.
