Swivel stopper

Name: Swivel stopper
SKU: AS-SWIVEL
Price: 6.61 USD
Availability: InStock

Swivel stopper steel zinc

Be the first to review this product

USD$6.61

Stocks

Farnham: 1550

Los Angeles: 1784

Lawrenceville: 3403

Option to place on left or right side of structure
Ideal solution to stop mechanical movement
Galvanized steel

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

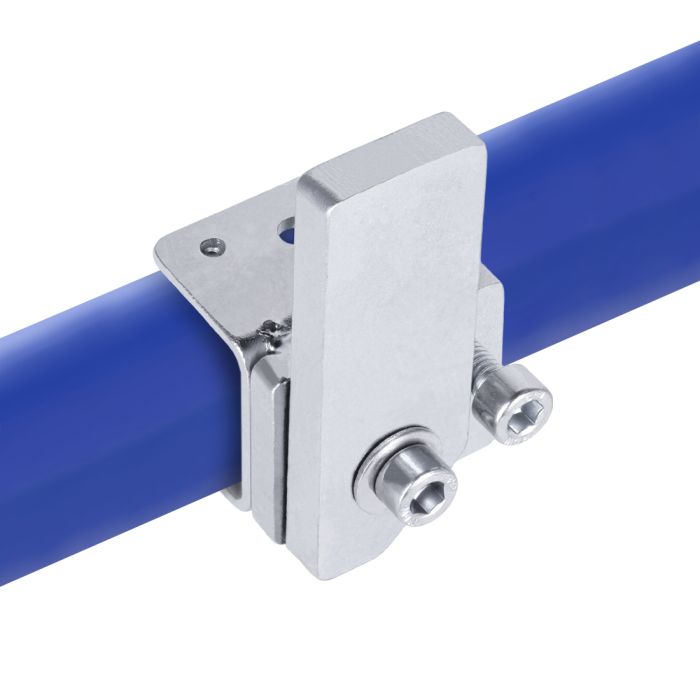

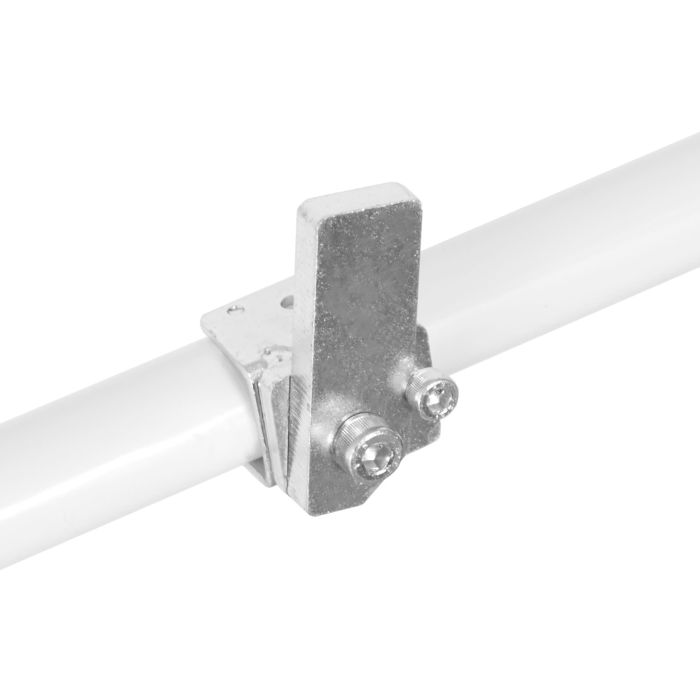

The AS-SWIVEL is a metal rotating stopper.

This accesory is commonly used to prevent drawers from openinig on any strucutre, It can also be used to lock doors or any other movable item that may need to be restrained.

Technical Information: The central bolt is an M6 while the stop bolt is an M6, so both require a 5mm Allen key.

Installation Steps
See the installation steps tab to view how to install the AS-SWIVEL

Technical Information

More Information
Units per box (sold separately)	100
Height inches	1 1/2 in (38mm)
Width inches	1 5/8 in (41mm)
Depth inches	1 11/16 in (43mm)
Unit weight pounds	0.506 lbs (0.230 kg)
Box dimensions inches	11 X 9 X 5 in (279mm X 229mm X 127mm)
Recyclable	Yes
Compatible pipe systems	Flexpipe, Creform, Fastube
Noncompatible pipe systems	Trilogiq
Reusable	Yes
Electric conductivity (ESD)	Yes
Material	Hot rolled steel (SPHC)
Steel hardness (HRB)	0.65
Finish	Glossy
System operational temperature	-58°F à 185°F (-50°C à 85°C)
Steel treatment	Galvanised
Manufacturing technique	Folded and welded

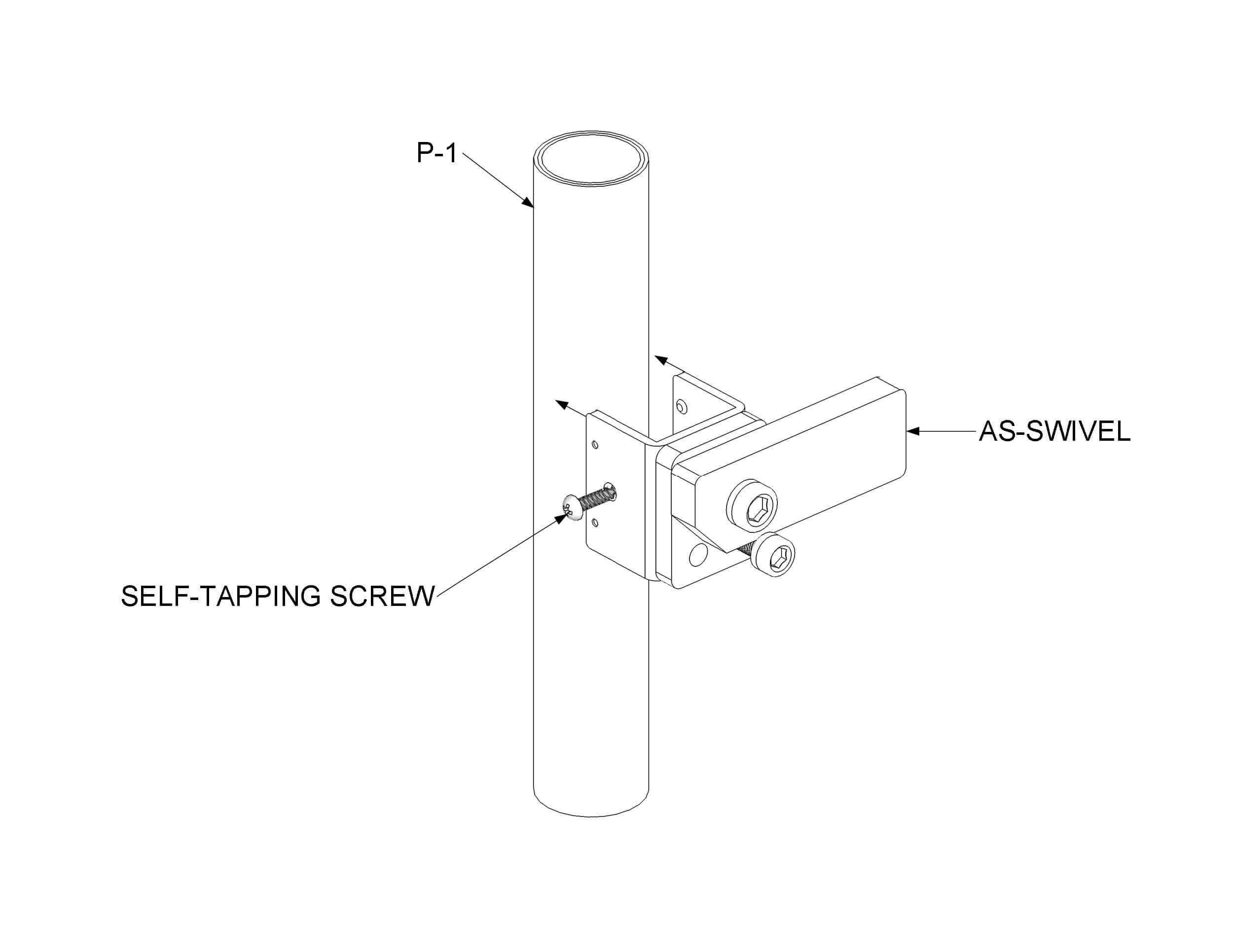

Installation Steps

Ensure you have the following parts:
- 1x AS-SWIVEL
- 1x 28mm pipe of your choice
- 2x F-A85/8
- 1x Drill w/ #2 square head bit
Press AS-SWIVEL unto P1 in the desired position
Fix the AS-SWIVEL to the P with the help of two F-A85/8 screws.
