Door Latch Bracket

AS-LATCH is a spring loaded accessory that automatically engages to keep doors and panels closed
Specifically useful in environments where access is frequent
Cost-effective solution, installation is straightforward, reducing labor costs
Improved safety: door or panel remains securely latched and can only be opened through user action

Pack Size:

Custom Quantity

Custom Qty

USD$20.37

(USD$20.37 each)

Total Qty: 1

Add to Wish List

Description
Technical Information

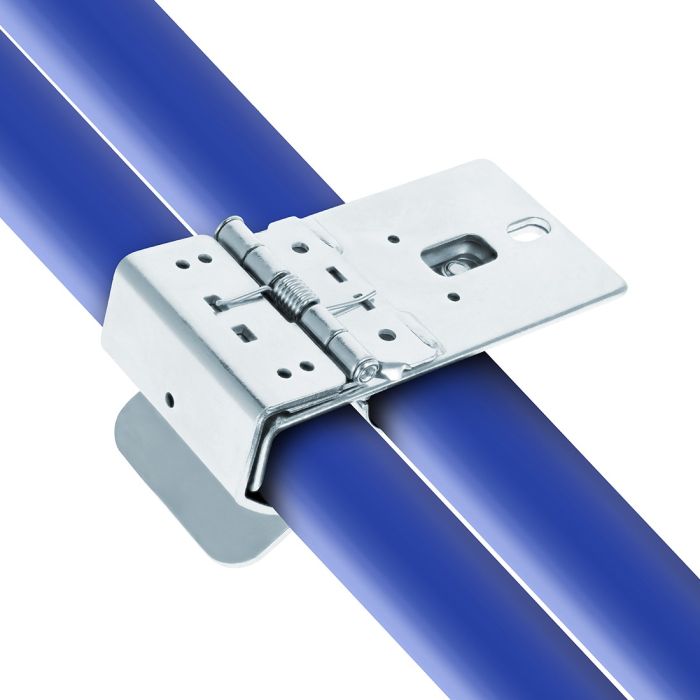

The AS-LATCH is a zinc-plated steel spring-loaded latch designed to keep a door or drawer securely closed. The latch is mounted on one tube of the moving section and clips onto a second parallel tube when the door or drawer is pushed into the closed position. The spring-loaded mechanism automatically engages around the receiving tube, helping prevent accidental opening during use or movement.

To install the AS-LATCH, secure the latch body to the tube of the opening side of the door or drawer. Position the second tube parallel to the mounting pipe and align it with the opening of the latch. When the moving section is closed, the receiving pipe pushes against the spring-loaded latch and clips into place.

Assembly tip:

Temporarily position the AS-LATCH before completing the final tightening. Close the door or drawer several times to confirm that the latch aligns properly, clips into place smoothly, and releases without requiring excessive force.

Technical note:

Spacing between the tubes should be 1.5 inch (center to center). Incorrect spacing or misalignment could prevent the latch from clipping properly or cause premature wear.

More Information
Color	Silver
Length	4.33 in. (109.8 mm)
Height	2.16 in. (54.6 mm)
Width	2.24 in. (57 mm)
Weight (kg/lbs)	0.859 lb (0.389 kg)
Common Usage	Provides reliable, convenient operation in applications where doors or panels are opened regularly.
