Quick release latch
- Highly versatile
- Quick-release
- A must have for portable modules

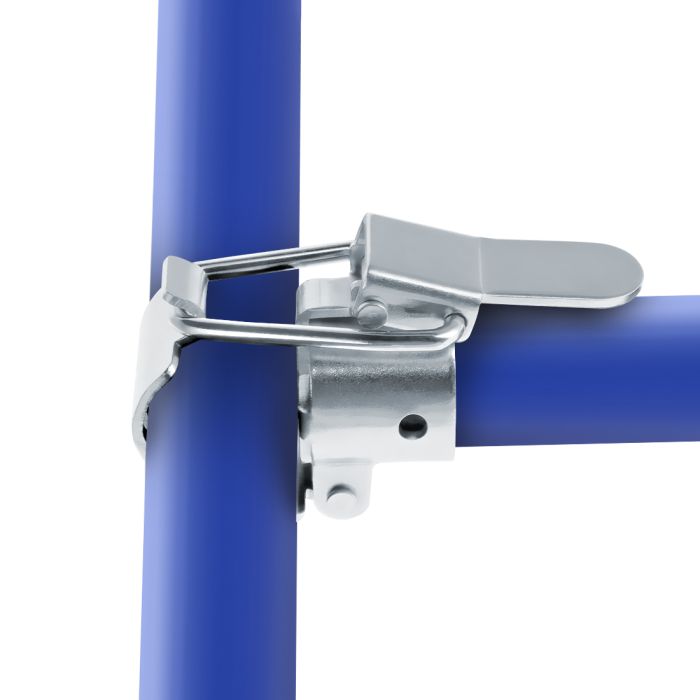

The AC-STRAP is a metal accessory used to set and release sections of Flexpipe structures quickly.
You can use this product to build doors, folding shelves, removable separators, and many more portable modules. You can be incredibly creative with this part and find new and innovative uses for it.
The AC-STRAP is robust enough to maintain the connection of nearly any module. Its latch is designed so that it will not loosen itself. However, you can release it in two seconds, the AC-STRAP is easy to install with two F-A85/8 screws.
Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK
Installation Steps:
See the installation steps tab to view how to install the AC-STRAP.
Want to reuse parts of your old system?
The AC-STRAP is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and non-compatible with our parts.
| Units per box (sold separately) | 50 |
|---|---|
| Height inches | 2 1/4 in (57mm) |
| Width inches | 2 1/2 in (64mm) |
| Depth inches | 1 3/16 in (30mm) |
| Unit weight pounds | 0.319 lbs (0.145 kg) |
| Box dimensions inches | 11 X 9 X 5 in (279mm X 229mm X 127mm) |
| Recyclable | Yes |
| Compatible pipe systems | Flexpipe, Creform, Fastube |
| Noncompatible pipe systems | Trilogiq |
| Reusable | Yes |
| Electric conductivity (ESD) | Yes |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 0.65 |
| Finish | Glossy |
| System operational temperature | -58°F à 185°F (-50°C à 85°C) |
| Steel treatment | Galvanised |
| Manufacturing technique | Folded and welded |
| Loading capacity | 154 lbs (70 kg) |
- Ensure you have the following parts:
- 1x AC-STRAP
- 2x F-A85/8
- 1x 28mm pipes of your choice
- 1x Drill w/ #2 square head
- Push AC-STRAP completely on the P1 pipe.
- Fix the AC-STRAP to the P1 pipe with two F-A85/8 screws in the corresponding openings.
