Tee hinge joint

Tee hinge joint steel cr
Farnham: 12474
Los Angeles: 3104
Lawrenceville: 10286

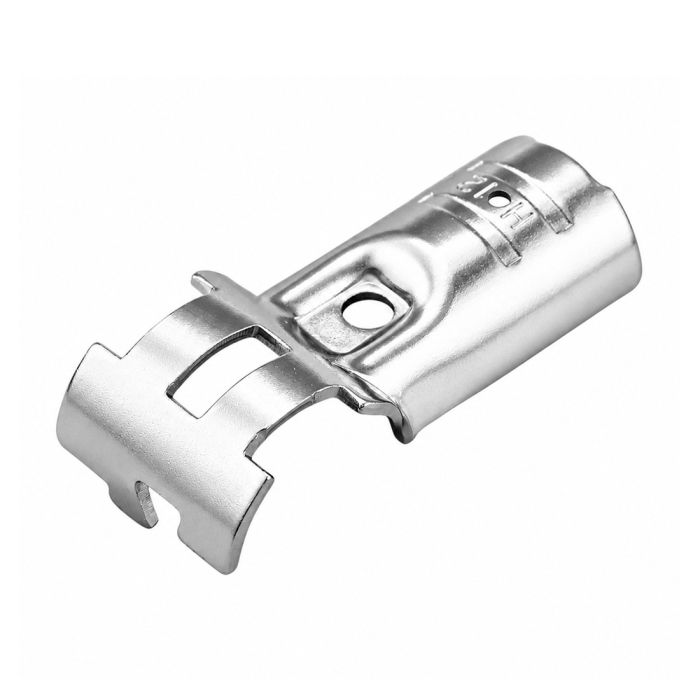

The H-12NP is a anti-static metal single joint needed to assemble the HJ-12NP joint set. This product is a different version of an H-1NP that can be assembled on a hinge. To build an HJ-12NP you just need to group two H-12NP around an AP-HINGE, creating a tee joint that can rotate.

The H-12NP is a unique component of the Flexpipe system, and the joint set obtained from it is used for many specialized applications. Be sure to check the HJ-12NP product page for more information about the possible applications.

Without an AP-HINGE, the H-12NP will not work on the 28mm pipe. Make sure you have enough AP-HINGE in stock when purchasing this item or purchase some at the same time.

More Information
Units per box (sold separately)180
Height inches1 7/16 in (36mm)
Width inches3 5/16 in (84mm)
Depth inches1 1/2 in (38mm)
Unit weight pounds0.139 lbs (0.063 kg)
Box dimensions inches11 X 9 X 5 in (279mm X 229mm X 127mm)
Compatible joint systemsFlexpipe, Creform
Noncompatible joint systemsTrilogiq, Fastube
Noncompatible joint systemsTrilogiq, Fastube
RoHS certificationYes
Compatible pipe systemsFlexpipe, Creform, Fastube
Noncompatible pipe systemsTrilogiq
Frequency of useLow
Electric conductivity (ESD)Yes
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)0.65
UV resistanceHigh
System operational temperature-40°F à 122°F (-40°C à 50°C)
Steel treatmentNickel electroplating
Manufacturing techniquePressed and deburring
Striations for grip2
