SKU
SQS-CENTER
Center Plate for Square Pipe wih Hardware
- 6 1/4'' (~160mm) Side
- 1 7/8'' (~50mm) Height
USD$29.26
Columbia City (IN):
778
Los Angeles (CA):
393
1171 units in stock
Location details

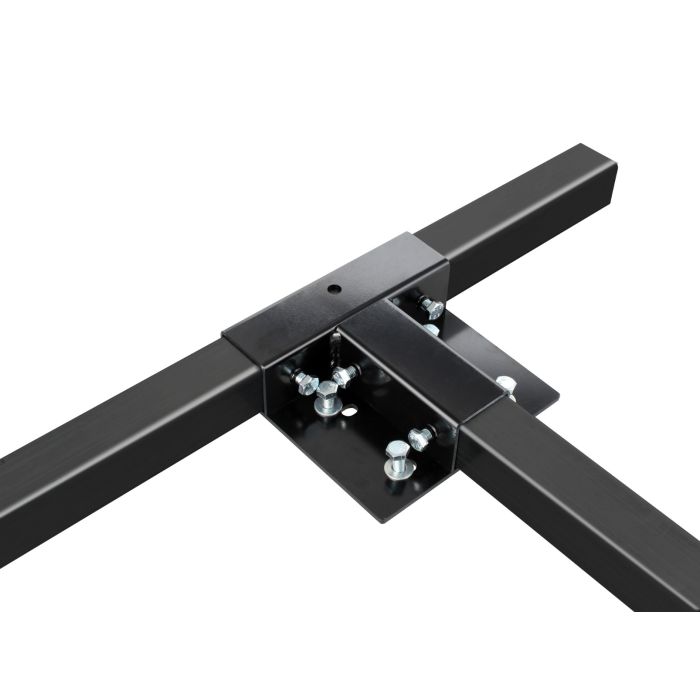

The SQS-CENTER is a heavy-duty caster plate that goes in the middle to reinforce your base you just need to slide it in and place it at the measure you want.
The SQS-CENTER is designed so you are able to put different wheels size on it 4, 5, or even 6 inches and those items:
For your structure, you still are in need to use normal pipes. You can use either the normal steel pipe and, or the PE coated black pipe (ESD).
Color | Black |
---|---|
Box Quantity | 2 |
Length | 6 ¼ in (159 mm) |
Height | 1 15/16 in (49 mm) |
Width | 6 ¼ in (159 mm) |
Material Thickness | Insert: 3/32 in (2.381 mm). Plate: 5/32 in (3.968 mm). |
Weight (kg/lbs) | 3.3 lb (1.36 kg) |
Common Usage | Heavy duty carts, racks and flow racks |
Primary Material | Galvanised hot rolled steel (SPHC) |
Electric Conductivity (ESD) | No |
