SKU
AP-HOLE

Pipe mount start

Pipe mount start steel zinc
USD$2.20
Stocks
Farnham: 1184
Los Angeles: 758
Lawrenceville: 1138
  • Durable design
  • Corrosion-resistant
  • Galvanized steel

The AP-HOLE is a single metal connector that can be used with the AP-SLEEVE for various setups.

Used it to incorporate adjustable shelving to any Flexpipe structure or
as a guard to protect parts from falling out.

There are many ways to utilize, imagination is the key!

Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK

Installation Steps:
See the installation steps tab to view how to install the AP-HOLE

Want to reuse parts of your old system?
The AP-HOLE is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and non-compatible with our parts.



More Information
Units per box (sold separately)165
Unit weight pounds0.90 lbs (0.041 kg)
Box dimensions inches11 X 9 X 5 in (279mm X 229mm X 127mm)
RoHS certificationYes
RecyclableYes
Compatible pipe systemsFlexpipe, Creform, Fastube
Noncompatible pipe systemsTrilogiq
Frequency of useVery high
ReusableYes
Electric conductivity (ESD)Yes
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)0.65
FinishGlossy
System operational temperature-58°F à 185°F (-50°C à 85°C)
Steel treatmentGalvanised
Manufacturing techniqueFolded and welded

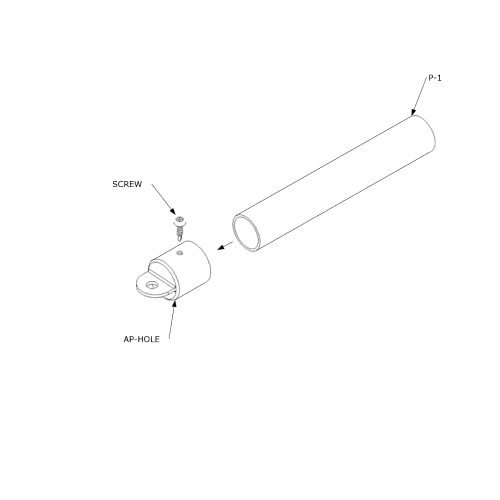

  1. Ensure you have the following parts:
    • 1x AP-HOLE
    • 1x F-A85/8
    • 1x 28mm pipes of your choice
    • 1x Drill w/ #2 square head
  2. Slide P1 pipe into the inside of AP-HOLE
  3. Fix the AP-HOLE to the P1 pipe with an F-A85/8 screw.
