Adjustable non-slip outer foot Steel zinc

Adjustable outer foot with anti-slip base
Farnham: 910
Los Angeles: 653
Lawrenceville: 1592
  • Mostly used with EP-96-ST and SP-96-BL 2mm
  • Ideal for leveling uneven flooring
  • Quick and easy installation
  • Rubber foot for anti-slip

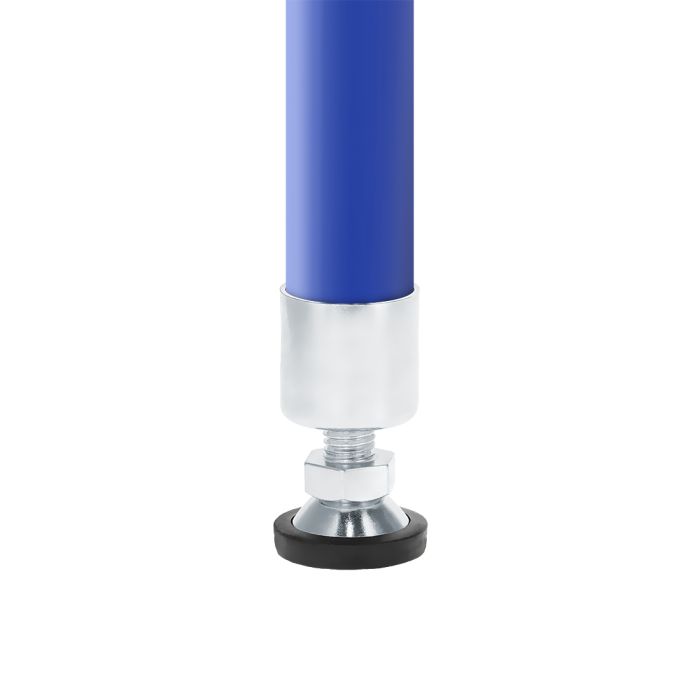

The AF-TLEV is a metal foot that increases stability and helps to even surfaces.
It can be on soft surface and is compatible with our EP-96-ST stainless and SP-96-BL(2mm) pipes.

Bolt M12 (12 mm) Length 4" (100 mm)

The foot is installed on the outside of the pipe.

Specifically designed to gain space by being able to be placed side by side to another structure or up against a wall.

Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK

Want to reuse parts of your old system?
The AF-TLEV is compatible with many other pipe and connector systems.

More Information
Box Quantity100
Weight (kg/lbs)0.317 lb (0.144 kg)
Box DimensionsCardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm)
Common UsageSoft surface
Compatible brandFlexpipe, Creform, Fastube
Non Compatible BrandTrilogiq
Primary MaterialHot rolled steel (SPHC)
Secondary MaterialRubber
Electric Conductivity (ESD)Yes
