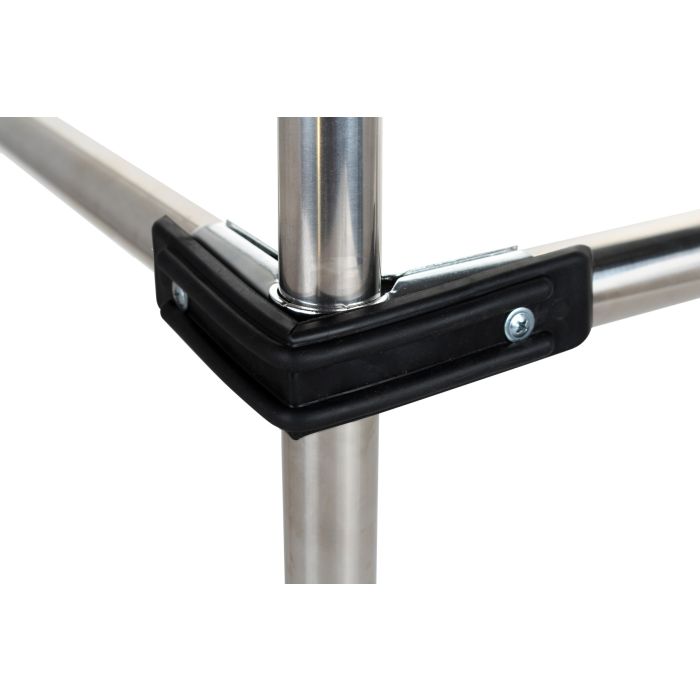

Rubber Corner Bumper for Mobile Structure Black
- Protects mobile structures
- Moisture resistant
- Durable heavy-duty rubber
The AC-BUMPER is a rubber corner used to protect any type of mobile structure from any damage that may occur during transport along with it's surrounding enviroment.Â
Due to its rubber composition they are are resistant to moisture and absorb shock very well.
It can be adapted to other applications, imagination is the key!
Installation Steps
See the installation steps tab to view how to assemble the AC-BUMPER.
Want to reuse parts of your old system?
The AC-BUMPER is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
All AF-RUBÂ are sold individually.
To make it easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system considers a single amount only. Please enter the total amount of AC-BUMPER you wish to receive (example; 100 units = 1 box).
| Box Quantity | 100 |
|---|---|
| Length | 8 1/4 in (210 mm) |
| Height | 1 1/8 in (29 mm) |
| Width | 1/4 in (6.35 mm) |
| Weight (kg/lbs) | 0.099 lb (0.045 kg) |
| Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
| Compatible brand | Flexpipe, Creform, Fastube,Trilogiq |
| Primary Material | Rubber |
| Temperature Resistance | -58°F to 185°F (-50°C to 85°C) |
| Frequency of Use | Low |
| Electric Conductivity (ESD) | No |
- Ensure you have the following parts:
- 1x AC-BUMPER
- 3x F-A858
- 1x HJ-2Â joint set fixed to P-1, P-2 and P-3 pipes
- 1x Drill w/ #2 square head
- Bend AC-BUMPER around HJ-2 joint.
- Line up to cover entire joint set and position screws to corresponding openings.
- Fix the AC-BUMPER to the P2 and P3 pipes with three F-A858 screws.
- Ensure not to overtighten causing screws to pass through AC-BUMPER.
