Flat anchor joint set

Flat anchor joint set steel bk

In stock

  • Compatible with 28 mm pipes
  • Assembly required
  • Can be used to install Flexpipe on wall

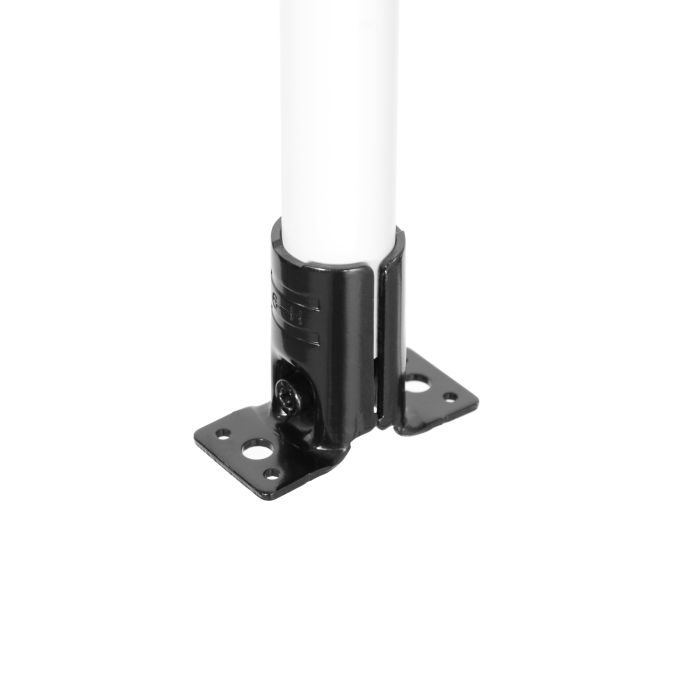

The HJ-9 is a black metal joint set that allows you to fix your structure to a surface. This connector is frequently used with workstations, but also to fix structures on the floor, on the wall or on the ceiling.

To assemble an HJ-9 you need to combine two H-9 together with one M6-25B bolt and one M6-N nut.

Assembly tip:
This joint set has the benefit of allowing you to use a component of another system than Flexpipe. In this way, you can create hybrid structures such as workstations with aluminum or wooden shelves, for example. This anchorage can also be used as safety support under a surface. Psst! You might be interested in the HJ-8 joint set as well.

Installation Steps:
See the installation steps tab to view how to assemble this connector.

Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: HJ-9NP

Want to reuse parts of your old system?
The HJ-9 Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

More Information
Units per box (sold separately)NA
Needed parts2x H-9 + 1x M6-25B + 1x M6-N
Length inches2 3/16 in (56 mm)
Width inches1 5/16 in (33 mm)
External height inches2 1/4 in (57mm)
External width inches2 13/16 in (71mm)
External depth inches1 5/16 in (33mm)
Steel thickness inches1/8 in (2.5 mm)
Unit weight pounds0.293 lbs (0.133 kg)
Compatible joint systemsCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
Noncompatible joint systemsFastube, Trilogiq (28.6 mm)
RoHS certificationYes
Compatible pipe systemsCreform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)
Noncompatible pipe systemsTrilogiq (28.6 mm)
Frequency of useModerate
Reusable partsYes
Electric conductivity (ESD)No
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)68-75 HRB
UV resistanceHigh
System operational temperature-148°F to 572°F (-100°C to 300°C)
Steel treatmentBlack cathodic electrodeposition (Ecoating)
Manufacturing techniqueStamping and deburring
Striations for grip4 striation grip lines
Positioning guide4 positioning guide lines
Additional reinforcement holeNone
  1. Ensure you have the following parts:
  2. Take the two H-9 connectors and group them around the pipe.
  3. Fix the connectors together by placing the M6-25B with the M6-N in the corresponding openings and completely tighten until the HJ-9 joint set is firmly attached to the pipe.
  4. Fix the HJ-9 on the surface of your choice with 4 F-SF81 or any appropriate screws for the desired surface.

See image below for assembly idea
