SKU
HJ-9NP

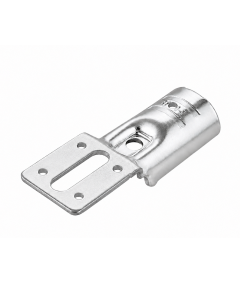

Flat anchor joint set

Flat anchor joint set steel cr
CDN$2.08

In stock

  • Compatible with 28 mm pipes
  • Assembly required
  • Joint set with antistatic properties (ESD)

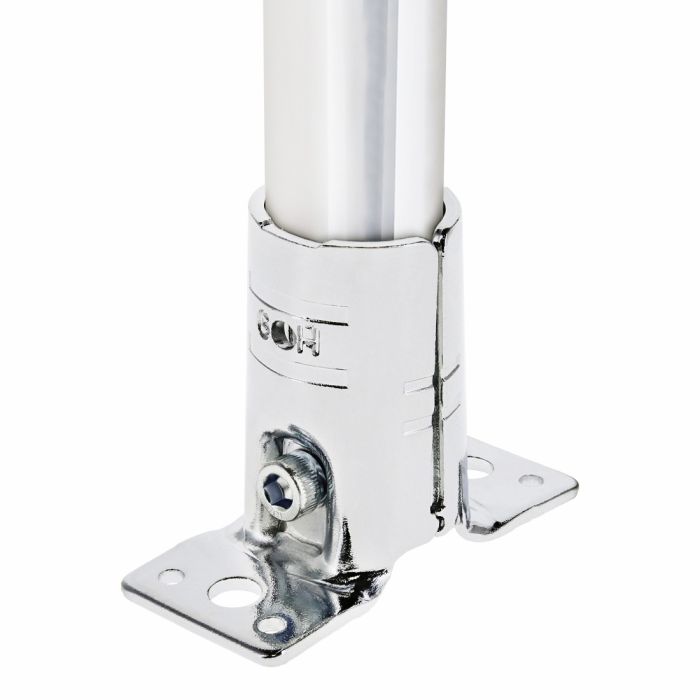

The HJ-9NP is a chrome-plated joint set with antistatic properties (ESD) that allows fixing your structure to a surface. This connector is frequently used with workstations, but also to fix structures on the floor, on the wall or on the ceiling.

To assemble an HJ-9NP you need to combine two H-9NP together with one M6-25BWZ bolt and one M6-NWZ nut.

Assembly tip:
This joint set has the benefit of allowing you to use a component of another system than Flexpipe. In this way, you can create hybrid structures such as workstations with aluminum or wooden shelves, for example. This anchorage can also be used as safety support under a surface. Psst! You might be interested in the HJ-8NP joint set as well.

Installation Steps:
See the installation steps tab to view how to assemble this connector.

Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: HJ-9

Want to reuse parts of your old system?
The HJ-9NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

More Information
Best SellerNo
Units per boxNA
Needed parts2x H-9NP + 1x M6-25BWZ + 1x M6-NWZ
Length inches2 3/16 in (56 mm)
Width inches1 5/16 in (33 mm)
Steel thickness inches1/8 in (2.5 mm)
Unit weight pounds0.293 lbs (0.133 kg)
Compatible joint systemsCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
None compatible joint systemsFastube, Trilogiq (28.6 mm)
RoHS certificationYes
RecyclableYes
Compatible pipe systemsCreform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)
None compatible pipe systemsTrilogiq (28.6 mm)
ReusableYes
Electric conductivity (ESD)Yes
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)68-75 HRB
FinishShiny
System operational temperature-148°F to 572°F (-100°C to 300°C)
Steel treatmentChrome plating
Manufacturing techniqueStamping and deburring
Striations for grip4 striation grip lines
Positioning guide4 positioning guide lines
Additional reinforcement holeNone
  1. Ensure you have the following parts:
    • 2x H-9NP
    • 1x M6-25BWZ bolt
    • 1x M6-NWZ nut
    • 1x 28mm ESD pipe of your choice
    • 1x T-HANDLE 5mm hex key
  2. Take the two H-9NP connectors and group them around the pipe.
  3. Fix the connectors together by placing the M6-25BWZ bolt with the M6-NWZ nut in the corresponding openings and completely tighten until the HJ-9NP joint set is firmly attached to the pipe. Make sure to place the bolts on the most accessible side. A force between 12-14 Nm is recommended for this step.
  4. Fix the HJ-9NP on the surface of your choice with 4 F-SF81 or any appropriate screws for the desired surface.

See image below for assembly idea
