Bolt for HJ-15 Set White Zinc
- Necessary for HJ-15NP assembly
- High corrosion resistance
- 2000 units per box (please order individually)

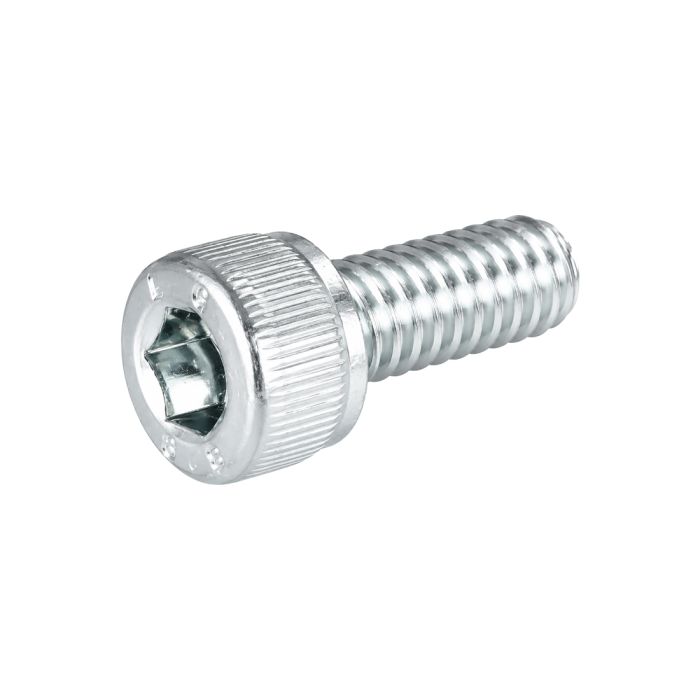

The M6-12BWZ is a white zinc coated metal bolt that its only purpose is to assemble the HJ-15NP joint.
To assemble an HJ-15 joint, you need to connect one H-15NP and one H-16NP with one M6-N nut and one M6-12B bolt.
This product was designed shorter than its more popular counterpart. The M6-12BWZ should not be confused with the longer bolt in the Flexpipe system called
M6-25BWZ.
We don't recommend that you use this part with the M6-N nut to connect anything other than the Flexpipe system.
Installation Steps:
See the installation steps tab to view how to assemble this bolt.
Technical Information:
This bolt is fixed to the M-6N using a 5mm T-HANDLE allen wrench.
(It is essential that the bolt is tightened between 12-14 N.m torque.)
Want to reuse parts of your old system?
The M6-12BWZ bolt is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
Â
| Box Quantity | 2000 |
|---|---|
| Weight | 0.011 lb (0.005 kg) |
| Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
| Common Usage | Necessary for HJ-15NP assembly |
| Compatible brand | Flexpipe, Creform, Fastube |
| Non Compatible Brand | Trilogiq |
| Primary Material | SCM440 with nickel electroplating |
| Temperature Resistance | -40°F to 572°F (-40°C to 300°C) |
| Frequency of Use | High |
| Electric Conductivity (ESD) | Yes |
- Make sure you have the following parts:
- 1x H-15NP
- 1x H-16NP
- 1x M6-12BWZ bolt
- 1x M6-NWZ nut
- 1x 28 mm tube of your choice
- 1x 5 mm hex T-HANDLE
- Group the H-15NP connector with the H-16NP connector around the first tube. Make sure the connectors are properly installed on the tube.
- Insert the M6-12BWZ bolt and M6-NWZ nut into the corresponding opening. Make sure to place the bolt on the most accessible side.
- Tighten completely until the HJ-15NP is firmly attached to the tube. A torque between 12 and 14 Nm is recommended for this step.
- Attach the HJ-15NP connector joint to the surface of your choice using an F-SF81 or any other suitable screw depending on the surface you chose..
