SKU
AF-OSM

Stanchion Mount

Stanchion mount steel znc
CDN$7.50
Stocks
Farnham: 782
  • Superb stability
  • Adds rigidity to vertical pipes
  • Quick and easy installation

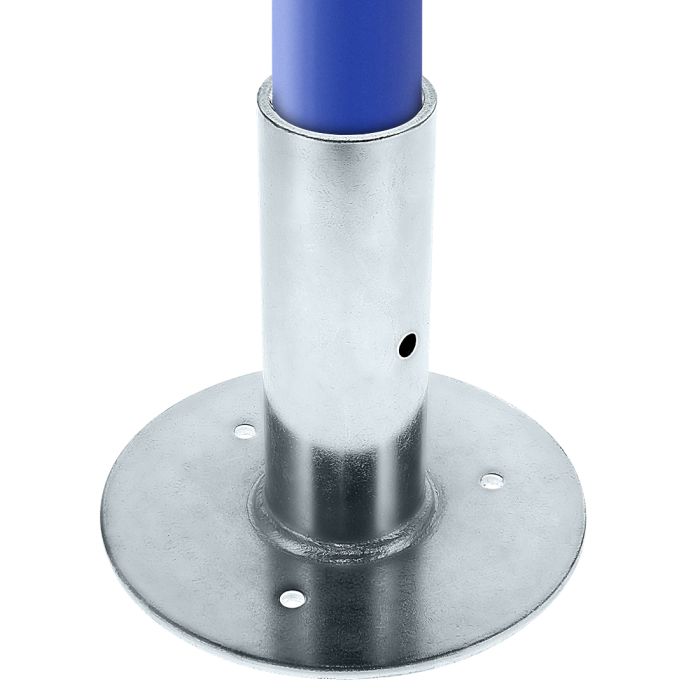

The AF-OSM is a galvanized welded structural anchor designed to fix any structure to the ground and increase stability by utilizing a wide foot base.

The foot anchor is installed on the outside of the pipe. We recommend securing the AF-OSM to the pipe using
an F-A858 metal screw.

Antistatic (ESD):

Compatible with EP-96-ST and EP-96-BK

Installation Steps
See the installation steps tab to view how to assemble the AF-OSM.

Want to reuse parts of your old system?
The AF-OSM is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.





More Information
Box Quantity15
Length4 3/16 in (106.375 mm)
Height4 1/16 in (103.187 mm)
Width4 3/16 in (107 mm)
Weight1.246 lb (0.460 kg)
Box DimensionsCardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm)
Primary MaterialGalvanised Hot rolled steel (SPHC)
Temperature Resistance-58°F to 185°F (-50°C to 85°C)
Electric Conductivity (ESD)Yes
  1. Ensure you have the following parts:
    • 1x AF-OSM
    • 1x 28mm pipe of your choice
    • 1x Mallet
  2. Insert the AF-OSM completely into P1 pipe with the help of a mallet
