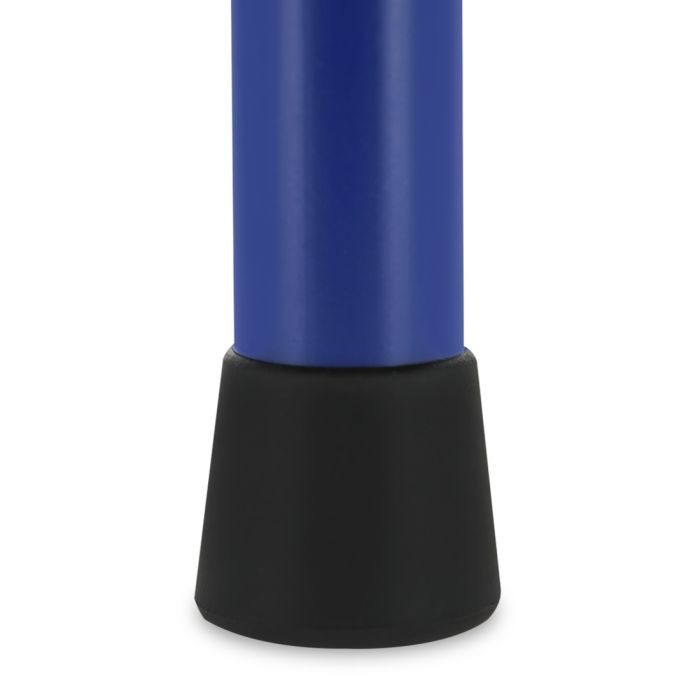

The AF-RUB is a rubber cap often used as a foot or protective cap. These anti-skid rubber caps are resistant to moisture and help reduce noisy movement.
Due to its rubber composition, it absorbs shock very well and can be adapted to many applications.
Use it for stacking structures in combination with the AF-STACK.
The AF-RUB will add 1/8" to your overall height/dimension, be sure to adjust your calculations accordingly.
See the installation steps tab to view how to assemble the AF-RUB.
Want to reuse parts of your old system?
The AF-RUB is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
All AF-RUB are sold individually.
To make it easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system considers a single amount only. Please enter the total amount of AF-RUB you wish to receive (example; 100 units = 1 box).
|Units per box||100|
|Height inches||1 7/16 in (37mm)|
|Width inches||1 1/2 in (38mm)|
|Depth inches||1 1/2 in (38mm)|
|Unit weight pounds||0.082 lbs (0.037 kg)|
|Box dimensions inches||11 X 9 X 5 in (279mm X 229mm X 127mm)|
|Compatible pipe systems||Flexpipe, Creform, Fastube|
|None compatible pipe systems||Trilogiq|
|Electric conductivity (ESD)||No|
|System operational temperature||-58°F à 185°F (-50°C à 85°C)|
|Loading capacity||250 lbs|
- Ensure you have the following parts:
- 1x AF-RUB
- 1x 28mm pipe of your choice
- 1x Mallet
- Push AF-RUB into P1 pipe
- If necessary finish pushing into place with the aid of a mallet
