HJ-2

Corner joint set

Corner joint set steel bk
CDN$2.15

In stock

  • Compatible with 28 mm pipes
  • Assembly required

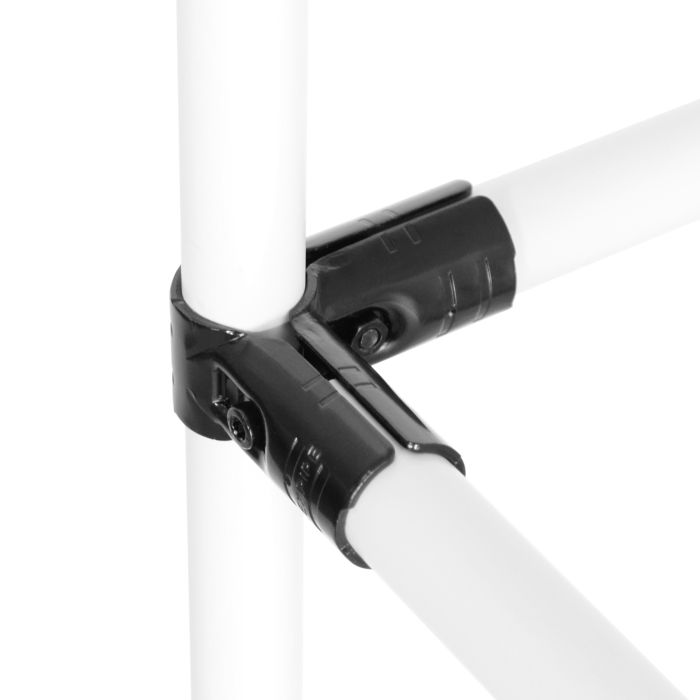

The HJ-2 is a black metal joint set that allows you to create a three-pipe intersection or a corner. This joint set will probably be used for most of your structure's external corners and structural separations on two perpendicular sides. Other applications of the HJ-2 include the creation of more complex and ergonomic handles, the creation of V-shape racking support or a V-shape roof. It is often associated with the AI-CORNER accessory when positioning a surface on external sides.

To assemble an HJ-2 you need to combine an H-2 and an H-3 together with two M6-25B bolts and two M6-N nuts.

Technical Information:
This joint set is designed with 10 striations for a better grip on the plastic coating of the 28 mm pipes. It also includes 8 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw F-A85/8, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.

Installation Steps
See the installation steps tab to view how to assemble this connector.

Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: HJ-2NP

Want to reuse parts of your old system?
The HJ-2 Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

More Information
Best SellerYes
Needed parts1x H-2 + 1x H-3 + 2x M6-25B + 2x M6-N
Length inches2 9/16 in (65 mm)
Width inches1 5/16 in (33 mm)
External height inches3 1/4 in (83mm)
External width inches3 1/4 in (83mm)
External depth inches1 5/16 in (33mm)
Steel thickness inches1/8 in (2.5 mm)
Unit weight pounds0.510 lbs (0.232 kg)
Compatible joint systemsCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
None compatible joint systemsFastube, Trilogiq (28.6 mm)
RoHS certificationYes
RecyclableYes
Compatible pipe systemsCreform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)
None compatible pipe systemsTrilogiq (28.6 mm)
Frequency of useVery High
ReusableYes
Reusable partsYes
Electric conductivity (ESD)No
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)68-75 HRB
FinishGlossy
UV resistanceHigh
System operational temperature-148°F to 572°F (-100°C to 300°C)
Steel treatmentBlack cathodic electrodeposition (Ecoating)
Manufacturing techniqueStamping and deburring
Striations for grip10 striation grip lines
Positioning guide8 positioning guide lines
Additional reinforcement hole5 reinforcement holes
  1. Ensure you have the following parts:
    • 1x H-2
    • 1x H-3
    • 2x M6-25B bolts
    • 2x M6-N nuts
    • 3x 28mm pipes of your choice
    • 1x T-HANDLE 5mm hex key
  2. Fix the H-3 connector to the desired location on the first pipe.
  3. Put the H-2 connector in the inner corner of the HJ-2.
  4. Loosely tighten the M6-25B bolt and the M6-N nut in the corresponding openings of the HJ-2. Make sure to place the bolts on the most accessible side.
  5. Insert the second and third pipes within the openings of the HJ-2, and between the first and the second positioning guidelines.
  6. Tighten completely the M6-25B and the M6-N together until the HJ-2 is firmly attached to the pipes. A force between 12-14 Nm is recommended for this step.
