Side anchor joint set

Side anchor joint set steel bk

In stock

  • Compatible with 28 mm pipes
  • Assembly required

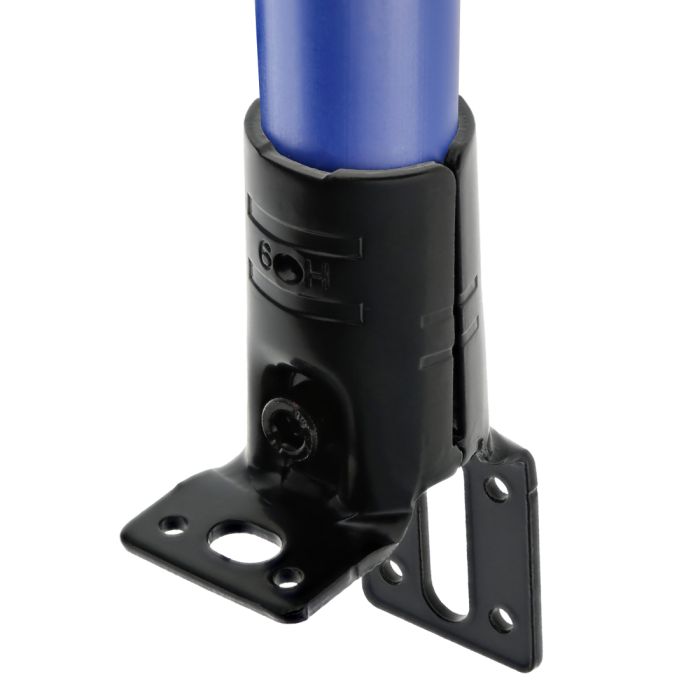

The HJ-8 is a black metal joint set that allows you to connect a surface to your structures, just like an anchor. This connector is designed to be attached to the edges of your surfaces and structures.

To assemble an HJ-8 you need to combine an H-8 and an H-9 together with one M6-25B bolt and one M6-N nut.

Assembly tip:
This joint set has the benefit of allowing you to use a component of another system than Flexpipe. In this way, you can create hybrid structures such as workstations with aluminum or wooden shelves, for example. This anchorage can also be used as safety support under a surface. Psst! You might be interested in the HJ-9 joint set as well.

Installation Steps
See the installation steps tab to view how to assemble this connector.

Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: HJ-8NP

Want to reuse parts of your old system?
The HJ-8 Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

More Information
Best SellerNo
Units per boxNA
Needed parts1x H-8 + 1x H-9 + 1x M6-25B + 1x M6-N
Length inches3 3/4 in (95 mm)
Width inches1 5/16 in (33 mm)
External height inches3 3/4 in (95mm)
External width inches2 in (51mm)
External depth inches1 5/16 in (33mm)
Steel thickness inches1/8 in (2.5 mm)
Unit weight pounds0.304 lbs (0.138 kg)
Compatible joint systemsCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
None compatible joint systemsFastube, Trilogiq (28.6 mm)
RoHS certificationYes
Compatible pipe systemsCreform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)
None compatible pipe systemsTrilogiq (28.6 mm)
Frequency of useVery low
Reusable partsYes
Electric conductivity (ESD)No
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)68-75 HRB
UV resistanceHigh
System operational temperature-148°F to 572°F (-100°C to 300°C)
Steel treatmentBlack cathodic electrodeposition (Ecoating)
Manufacturing techniqueStamping and deburring
Striations for grip4 striation grip lines
Positioning guide4 positioning guide lines
Additional reinforcement holeNone
  1. Ensure you have the following parts:
    • 1x H-8
    • 1x H-9
    • 1x M6-25B bolt
    • 1x M6-N nut
    • 1x 28mm pipe of your choice
    • 1x T-HANDLE 5mm hex key
  2. Take an H-8 and an H-9 connector and group them around the pipe.
  3. Fix the connectors together by placing the M6-25B bolt with the M6-N nut in the corresponding openings and completely tighten until the HJ-8 joint set is firmly attached to the pipe. Make sure to place the bolts on the most accessible side. A force between 12-14 Nm is recommended for this step.
  4. Fix the HJ-8 on the surface of your choice with 6 F-SF81 or any appropriate screws for the desired surface.
