Yellow 8' steel pipe
- Galvanized steel pipe coated with yellow polyethylene (PE)
- 1 1/16 in (28 mm) diameter
- 96 in (2438 mm) length
- Item only available in the United States
- Take advantage of our cutting service.

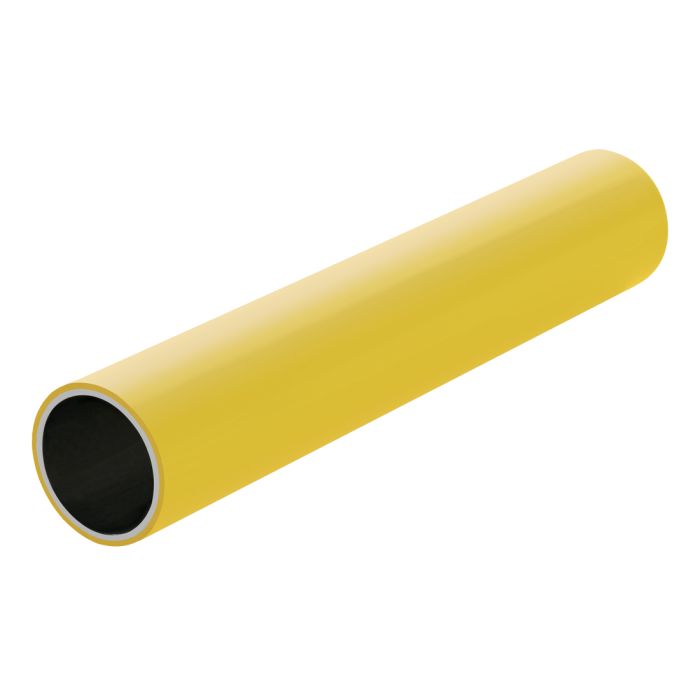

The P-96 is a 1 1/16 in (28 mm) external diameter galvanized steel pipe coated with colored polyethylene. To minimize shipping costs and maximize maneuverability, most of the pipes are 8 feet (2438 mm) long.
It is recommended to consult the page How to calculate the loading capacity before designing your structures.
P-96 has two electric conductivity (ESD) versions:
All the P-96 pipes of the Flexpipe system are compatible with most other 28 mm systems on the market. This allows any surplus left by your previous systems to be used.
Pre-cut service is now available for this product. Read more about our pre-cut service to find out how you can add it to your order.
|Units per package (sold separately)||10|
|Length inches||96 in (2438.4 mm)|
|Pipe outside diameter inches||1 1/16 in (27.6 mm ± 0.2 mm)|
|Pipe inside diameter inches||15/16 in (23.4 mm ± 0.1 mm)|
|Coating thickness inches||1/16 in (1.1 mm ± 0.1 mm)|
|Steel thickness inches||1/16 in (1.0 mm ± 0.02 mm)|
|Unit weight pounds||3.724 lbs (1.69 kg)|
|Package dimensions inches||96 1/2 X 4 1/4 X 2 1/4 in (2451 mm X 108 mm X 57 mm)|
|common uses||Carts, Racks, Flow Racks, Workstations, Boards|
|Compatible joint systems||Creform, Fastube|
|Noncompatible joint systems||Trilogiq|
|Electric conductivity (ESD)||No|
|Material||Cold rolled steel (SPCC)|
|Steel hardness (HRB)||70|
|Welding process||High frequency welding|
|Steel pipe treatment||Galvanized|
|Coating material||Polyethylene (PE)|
|UV resistance||Very high|
|System operational temperature||-40°F to 122°F (-40°C to 50°C)|
