SKU
H-8NP

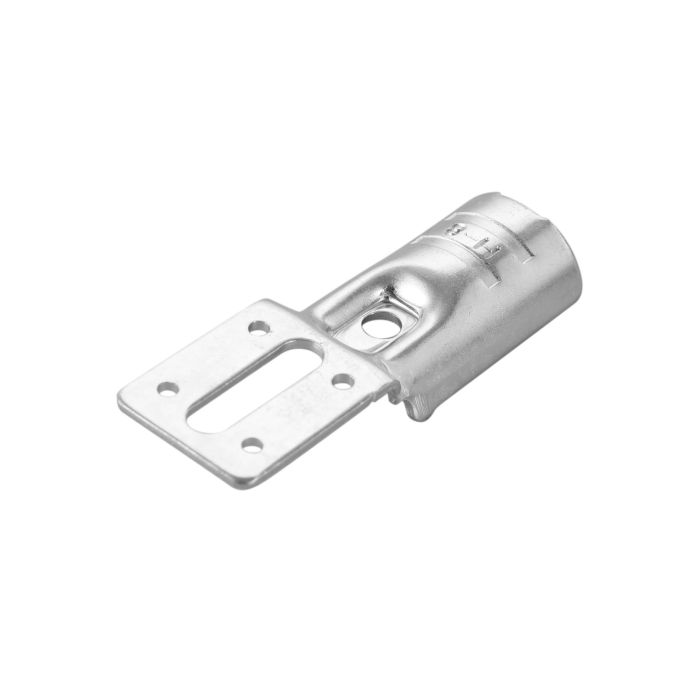

Side anchor joint

Side anchor joint steel cr
USD$1.05
Stocks
Farnham: 4790
Los Angeles: 900
Lawrenceville: 3551
More Information
Units per box (sold separately)180
Length inches3 3/4 in (95.3 mm)
Height inches3/4 in (19 mm)
Width inches1 5/16 in (33 mm)
Depth inches1 5/16 in (33mm)
Steel thickness inches1/8 in (2.5mm)
Unit weight pounds0.147 lbs (0.067 kg)
Box dimensions inches11 X 9 X 5 in (280mm X 225mm X 130mm)
Compatible joint systemsCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
None compatible joint systemsFastube, Trilogiq (28.6 mm)
RoHS certificationYes
RecyclableYes
Compatible pipe systemsCreform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)
None compatible pipe systemsTrilogiq (28.6 mm)
ReusableYes
Electric conductivity (ESD)Yes
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)68-75 HRB
FinishShiny
System operational temperature-148°F to 572°F (-100°C to 300°C)
Steel treatmentChrome plating
Manufacturing techniqueStamping and deburring
Striations for grip2 striation grip lines
Positioning guide2 positioning guide lines
Additional reinforcement hole1 hole
