SKU
P-157-YW

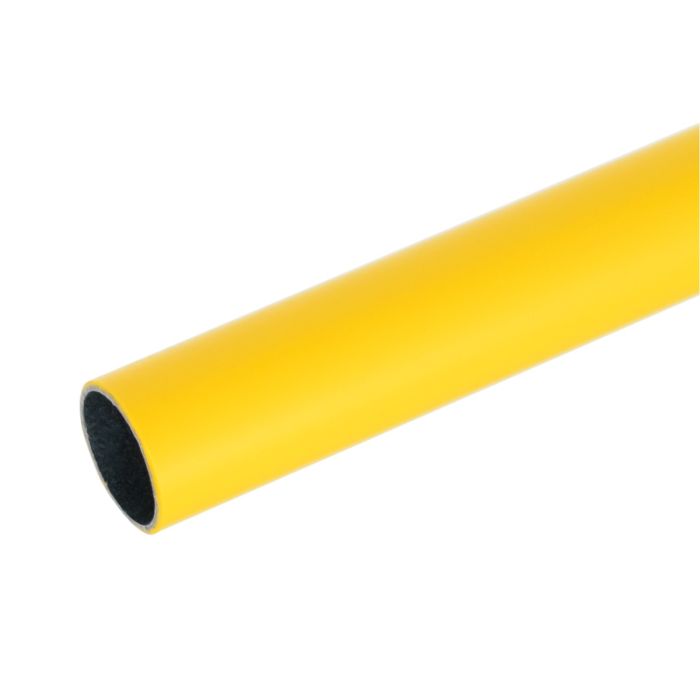

Yellow 4 m PE Coated Steel Pipe

Yellow 4 meters steel pipe PE coated
USD$0.00
  • Galvanized steel pipe coated with yellow high-density polyethylene (HDPE)
  • 1 1/16 in (28 mm) diameter
  • 157,48 in (4000 mm) length

The P-157 is a 1 1/16 in (28 mm) external diameter galvanized steel pipe coated with colored high-density polyethylene and the pipes are 157,48 inch. (4000 mm) long.

It is recommended to consult the page How to calculate the loading capacity before designing your structures.

P-157 has two electric conductivity (ESD) versions:

All the P-157 pipes of the Flexpipe system are compatible with most other 28 mm systems on the market. This allows any surplus left by your previous systems to be used.

More Information
Box Quantity200
Length157 in (3988 mm)
Outside Diameter1 1/16 in (27.6 mm ± 0.2 mm)
Inside Diameter15/16 in (23.4 mm ± 0.1 mm)
Material Thickness1/16 in (1.0 mm ± 0.02 mm)
Weight (kg/lbs)5.566 lb (2.530 kg)
Box Dimensions157 1/2 X 4 1/4 X 2 1/4 in (4000 mm X 108 mm X 57 mm)
Common UsageCarts, racks, flow racks, workstations, boards
Compatible brandCreform, Fastube
Non Compatible BrandTrilogiq
Primary MaterialCold rolled steel (SPCC)
Secondary MaterialHigh density polyethylene (HDPE)
Temperature Resistance-40°F to 122°F (-40°C to 50°C)
Electric Conductivity (ESD)No
Manufacturing TechniqueHigh frequency welding
Pantone7406C
