Blue 4 meters pipe
- Galvanized steel pipe coated with blue high-density polyethylene (HDPE)
- 1 1/8 in (28 mm) diameter
- 157 in (4000 mm) length
- Item only available in the United States
- MINIMUM order quantity of 200 pipes

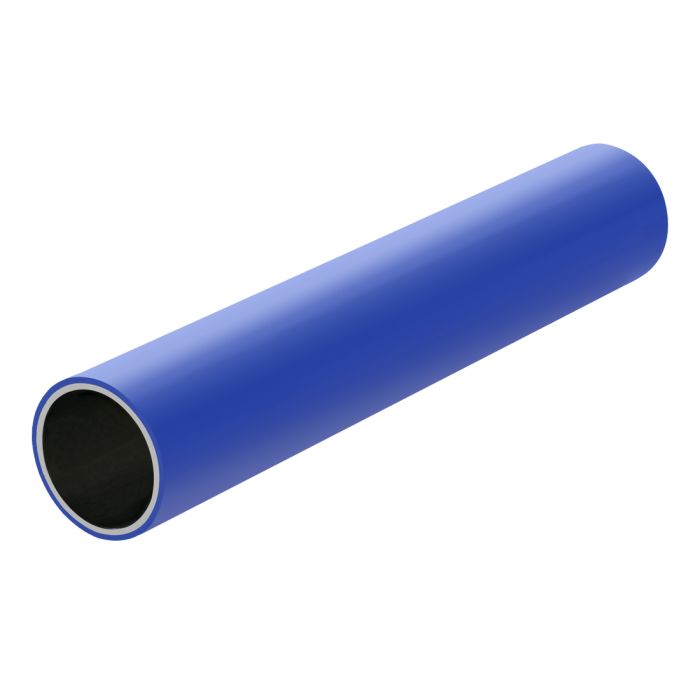

The P-157 is a 1 1/8 in (28 mm) external diameter galvanized steel pipe coated with colored high-density polyethylene.
It is recommended to consult the page How to calculate the loading capacity before designing your structures.
P-157 has an electric conductivity (ESD) version:
- Stainless steel (no polyethylene coating): EP-157-ST
All the P-157 pipes of the Flexpipe system are compatible with most other 28mm systems on the market. This allows any surplus left by your previous systems to be used.
|Units per package (sold separately)||200|
|Length inches||157 in (3987.8 mm)|
|Pipe outside diameter inches||1 1/16 in (27.6 mm ± 0.2 mm)|
|Pipe inside diameter inches||15/16 in (23.4 mm ± 0.1 mm)|
|Coating thickness inches||1/16 in (1.1 mm ± 0.1 mm)|
|Steel thickness inches||1/16 in (1.0 mm ± 0.02 mm)|
|Unit weight pounds||5.566 lbs (2.530 kg)|
|Box dimensions inches||157 1/2 X 4 1/4 X 2 1/4 in (4000 mm X 108 mm X 57 mm)|
|common uses||Carts, Racks, Flow Racks, Workstations, Boards|
|Compatible joint systems||Creform, Fastube|
|Noncompatible joint systems||Trilogiq|
|Electric conductivity (ESD)||No|
|Material||Cold rolled steel (SPCC)|
|Steel hardness (HRB)||70|
|Welding process||High frequency welding|
|Steel pipe treatment||Galvanized|
|Coating material||High density polyethylene (HDPE)|
|UV resistance||Very high|
|System operational temperature||-40°F à 122°F (-40°C à 50°C)|
